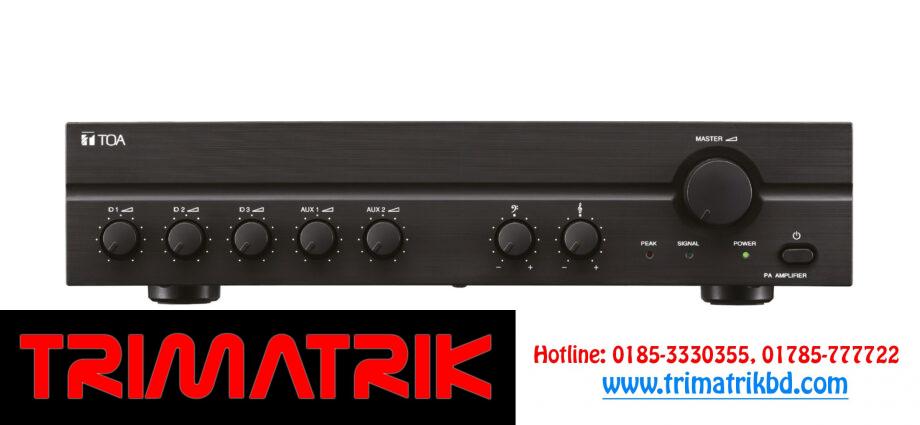

TOA A-2240 Price in Bangladesh

Multi-purpose, multi-function mixer/power amplifiers specifically designed for maximum versatility and cost-effective high-performance are ideal units for any PA requirement in locations such as shops and offices and other small to intermediate sized environments. A choice of different power outputs are offered as well as as paging override of BGM.

240 W rated output
User-friendly front panel allows easy operation
Excellent frequency response
3 electronically balanced microphone inputs, 2 AUX inputs and recording output
Phantom power is provided to MIC 1, for supplying power to a condenser microphone
Wide tone-control adjustment range of ±10dB for both bass and treble
100 V / 70 V line or 4 Ω speaker outputs
Recording output
3 MIC inputs, 2 AUX inputs for tuner, cassette player or other BGM sources
2-unit size

TOA A-2240 Description

The mixer power amplifier shall operate on AC mains or 24 V DC power, and shall control and mix 3 balanced (1 5-P DIN type and 2 phone jack inputs) MIC and 2 unbalanced (RCA pin jack) AUX inputs. Speaker outputs shall be balanced (floating) high impedance and low-impedance, and there shall be a low impedance REC out. The amplifier shall meet the following performance criteria: Power output shall be 240 W at less than 1% THD (at 1 kHz, 1/3 rated power). Frequency response shall be 50 Hz to 20 kHz (+/-3 dB), with an S/N ratio of over 60 dB. Phantom power (DC +21 V) and muting (of other input signals by 0 – 30 dB attenuation) shall be available for MIC 1. Bass Tone Control shall be +/- 10 dB at 100 Hz, and Treble Tone Control shall be +/-10 dB at 10 kHz. Power, signal and peak indicators, and fan cooling ventilation shall be provided. The panel shall be ABS black resin, and the case black steel plate. Dimensions shall be 420 (W) x 100.9 (H) x 360.3 (D) mm, and weight 13.2kg. The mixer power amplifier shall be TOA model A-2240.

Specifications

	A-2240	A-2030	A-2060	A-2120
Power source	220 – 240 V AC, 50 / 60 Hz (24 V DC)	220 – 240 V AC, 50 / 60 Hz (24 V DC)	220 – 240 V AC, 50 / 60 Hz (24 V DC)	220 – 240 V AC, 50 / 60 Hz (24 V DC)
Rated output	240 W	30 W	60 W	120 W
Frequency response	50 Hz – 20 kHz (±3 dB)	50 Hz – 20 kHz (±3 dB)	50 Hz – 20 kHz (±3 dB)	50 Hz – 20 kHz (±3 dB)
Distortion	< 1 % (at 1 kHz, 1/3 rated output power)	< 1 % (at 1 kHz, 1/3 rated output power)	< 1 % (at 1 kHz, 1/3 rated output power)	< 1 % (at 1 kHz, 1/3 rated output power)
Power consumption	238 W (EN 62368-1), 520 W (at rated output)	34 W (EN 62368-1), 78 W (at rated output)	72 W (EN62368-1), 150 W (at rated output)	124 W (EN 62368-1), 260 W (at rated output)
Speaker output	70/100 V, 4 Ω	70/100 V, 4 Ω	70/100 V, 4 Ω	70/100 V, 4 Ω
Amplifier	analogue	analogue	analogue	analogue
Current consumption	15 A (24 V DC, at rated output)	2 A (24 V DC, at rated output)	4 A (24 V DC, at rated output)	8 A (24 V DC, at rated output)
S/N ratio	60 dB (or more)	60 dB (or more)	60 dB (or more)	60 dB (or more)
Connectable microphones	3	3	3	3
Controls	Volume for each input, bass, treble, master volume	Volume for each input, bass, treble, master volume	Volume for each input, bass, treble, master volume	Volume for each input, bass, treble, master volume
Inputs	MIC 1, 2, 3: -60dBV, 600Ω, electronically balanced, CE and CE-GB versions: MIC 1: DIN jack, H and SA versions: phone jack; MIC 2, 3: phone jack. AUX 1, 2: -20dBV, 10kΩ, unbalanced, 2 RCA PIN jacks each (stereo to mono).	MIC 1, 2, 3: -60dBV, 600Ω, electronically balanced, CE and CE-GB versions: MIC 1: DIN jack, H and SA versions: phone jack; MIC 2, 3: phone jack. AUX 1, 2: -20dBV, 10kΩ, unbalanced, 2 RCA PIN jacks each (stereo to mono).	MIC 1, 2, 3: -60dBV, 600Ω, electronically balanced, CE and CE-GB versions: MIC 1: DIN jack, H and SA versions: phone jack; MIC 2, 3: phone jack. AUX 1, 2: -20dBV, 10kΩ, unbalanced, 2 RCA PIN jacks each (stereo to mono).	MIC 1, 2, 3: -60dBV, 600Ω, electronically balanced, CE and CE-GB versions: MIC 1: DIN jack, H and SA versions: phone jack; MIC 2, 3: phone jack. AUX 1, 2: -20dBV, 10kΩ, unbalanced, 2 RCA PIN jacks each (stereo to mono).
Control input	Mute: contact input for MIC 1 at DIN jack (pins 4-5)	Mute: contact input for MIC 1 at DIN jack (pins 4-5)	Mute: contact input for MIC 1 at DIN jack (pins 4-5)	Mute: contact input for MIC 1 at DIN jack (pins 4-5)
Outputs	for Recording: 0 dBV, 600 Ω, unbalanced, RCA jack	for Recording: 0 dBV, 600 Ω, unbalanced, RCA jack	for Recording: 0 dBV, 600 Ω, unbalanced, RCA jack	for Recording: 0 dBV, 600 Ω, unbalanced, RCA jack
Finish	ABS resin, Steel plate, black	ABS resin, Steel plate, black	ABS resin, Steel plate, black	ABS resin, Steel plate, black
Dimensions	420 x 100.9 x 280.3 mm (W x H x D)	420 x 100.9 x 280.3 mm (W x H x D)	420 x 100.9 x 280.3 mm (W x H x D)	420 x 100.9 x 280.3 mm (W x H x D)
Weight	13.2 kg	5 kg	7 kg	10.8 kg

TOA A-2240 Price in Bangladesh Back Side

Application examples for this product:

Houses of worship
Educational facilities
Auditoriums
Office buildings

Toa A-2240 Mixer Power Amplifier Five Channel Wide Frequency

Toa A-2240 high cost-performance mixer power amplifier has five channel integrated mixer amplifiers for paging and background music distribution, wide frequency response, very low noise and distortion, excellent output regulation, two mic inputs, balanced mic, 23 VDC phantom power switchable ON/OFF, two auxiliary inputs, stereo summing with dual-RCA jacks for convenient connection of stereo sources, suited for broadcasting paging or background music in schools / offices / shops / factories / mosques / churches and large rooms.

A-2240 Mixer Power Amplifier (H version)

The A-2240 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches, and large rooms.

Specification

* 0 dB = 1 V

Power Source	220 – 240 V AC, or 24 – 30 V DC
Rated Output	240 W
Power Consumption	238 W (EN60065), 520 W (AC operation at rated output), 15 A (DC operation at rated output)
Frequency Response	50 – 20,000 Hz (±3 dB)
Distortion	Under 1% at 1 kHz, 1/3 rated power
Input	MIC 1 – 3: -60 dB, 600 Ω, balanced, phone jack AUX 1,2: -20 dB, 10 kΩ, unbalanced, RCA pin jack
Output	Speaker out: Balanced (floating) High impedance: 42 Ω (100 V), 21 Ω (70 V) Low impedance: 4 Ω (31 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power	DC +21 V (MIC 1)
S/N Ratio	Over 60 dB
Tone Control	Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
Muting	MIC 1: Mutes other input signals by 0 – 30 dB attenuation
Indicator	Power, signal, peak
Finish	Panel: ABS resin, black Case: Steel plate, black
Dimensions	420 (W) × 100.9 (H) × 360.3 (D) mm (16.54″ × 3.97″ × 14.19″)
Weight	13.2 kg (29.1 lb)

A-2240 Mixer Power Amplifier (CE version)

The A-2240 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

Specification

* 0 dB = 1 V

Power Source	220 – 240 V AC, or 24 V DC
Rated Output	240 W
Power Consumption	238 W (EN60065), 15 A (DC operation at rated output)
Frequency Response	50 – 20,000 Hz (±3 dB)
Distortion	1% or less at 1 kHz, 1/3 rated power
Input	MIC 1: -60 dB, 600 Ω, balanced, DIN type (5 pins) MIC 2, 3: -60 dB, 600 Ω, balanced, phone jack AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack Mute: Contact pin 4 – 5 closure input (for MIC 1)
Output	Speaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33″) High impedance: 42 Ω (100 V), 21 Ω (70 V) Low impedance: 4 Ω (31 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power	DC +21 V (MIC 1)
S/N Ratio	60 dB or more
Tone Control	Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz
Muting	MIC 1 overrides other input signals with 0 – 30 dB attenuation by mute terminal contact in MIC 1 DIN type connector.
Ventilation	Fan cooling
Finish	Panel: ABS resin, black Case: Steel plate, black
Dimensions	420 (W) × 100.9 (H) × 360.3 (D) mm (16.54″ × 3.97″ × 14.19″)
Weight	13.2 kg (29.1 lb)
