Tripod Turnstile Gate

A tripod turnstile gate is a security measure used at some entrances to amusement parks and other amusement-oriented areas. The gate is typically a metal frame with three legs, each of which is attached to a horizontal bar. When visitors approach the gate, they must stand on one of the legs and hold onto the bar, preventing them from turning around and leaving.

What is Tripod Turnstile Gate?

A tripod turnstile gate is a security features used at some entrance ways such as airports and amusement parks. It is a series of three metal legs that are placed on a flat surface and can be rotated to allow people through one at a time. A tripod turnstile gate is a type of security gate used to restrict access to a specific area. The gate is typically made up of three or more metal legs that are arranged in a tripod shape. This design allows the gate to be easily moved, but also makes it difficult for anyone to push or pull it open.

What Is The Purpose Of The Tripod Turnstile Gate?

The purpose of the tripod turnstile gate is to prevent people from entering or exiting a building while the gate is closed.

A tripod turnstile gate is a gate that is designed to keep people and objects from entering or leaving a space. By using the gate, you can create a more secure environment for your store.

ZKTeco Tripod Gate in Dhaka-Bangladesh (BD) for December, 2024

ZKTeco TS1000 Pro Series

Our Pro series tripod turnstiles represent classic and safe way to protect your premises. They are widely used in various indoor environment applications. They fit perfectly as an economical option into the office buildings and other related applications.

Parameters

• Power Requirements: AC 100V to 120V or 200V to 240V, 50/60Hz
• Power Consumption: Runnin：18W, Standby：6W
• Working Temperature: -28 °C – 60 °C
• Working Humidity: 5% to 80% (Non-condensing)
• Speed of Throughput: RFID：Maximum 30/minute
  Fingerprint：Maximum 25/minute
• Lane Width (mm): 500 ( mm )
• Footprint (mm*mm): 520 * 810 ( mm )
• Dimension (L*W*H): 520*310*1010 ( mm )
• Dimension with Packing (L*W*H): 570*365*1080 ( mm )
• Net Weight (kg): 36 kg
• Weight with Packing (kg): 50 kg
• LED Indicator: Supports
• Cabinet Material: SUS304 Stainless Steel
• Lid Material: SUS304 Stainless Steel
• Barrier Material: SUS304 Stainless Steel
• Barrier Movement: Rotation
• Emergency Mode: Supports
• Security Level : Medium
• MCBF: 1 million
• Options / Accessories: Counter, SUS316 Cabinet and Lid, Remote Control
• Warranty: 1 year

ZKTeco mTS1000 Series

mTS1000 SUS304 stainless steel housing Bi-directional tripod turnstile with arm drop function LED pictogram for intuitive use High  throughput  rate Easy and simple installation process.

• Power Requirements

AC110V/220V, 50/60Hz

• Power Consumption

Running: 40W Standby: 10W

• Working Temperature

-28°C to 60°C

• Working Humidity

5%RH to 80%RH

• Speed of Throughput

RFID: Maximum 25/minute Fingerprint: Maximum 20/minute

• Lane Width (mm)

478 ( mm )

• Arm Length

478 ( mm )

• Footprint (mm*mm)

250 * 138 ( mm )

• Dimension (L*W*H)

798 * 750 * 950 ( mm )

• Dimension with Packing (L*W*H)

380 * 450 * 1150 ( mm )

• Gross Weight

40 kg

• Net Weight (kg)

35 kg

• LED Indicator

Yes

• Control System

Input controlled by dry conta

• Cabinet Material

SUS304 (optional SUS316)

• Lid Material

Acrylic

• Barrier Material

SUS304

• Barrier Movement

Rotated

• Emergency Mode

Support ( power off drop arm )

• Security Level

Medium

• Options / Accessories

Cardbox, Remote control, QR

• Certification

CE and FCC

ZKTeco TS5000A in BD

TS5000A is an automatic tripod turnstile series  designed for smooth and silent operation and  consumes very little power. It is made of stainless steel  that offers high durability. TS5000A is also surprisingly  compact and designed to operate in small workspace.

• Power Requirements

AC100 ~ 120V/200 ~ 240V, 50/60Hz

• Power Consumption

Starting : 73W
Standby : 20W
Unlock : 63W

• Working Temperature

-28°C to 60°C

• Working Humidity

5% to 80%

• Working Environment

Indoor / Outdoor (if sheltered)

• Speed of Throughput

RFID : 30 people per minute
Fingerprint : 25 people per minute

• Lane Width (mm)

465

• Dimension (L*W*H)

1200 * 300 * 1010 (mm)

• Dimension with Packing (L*W*H)

1310 * 420 * 1100 (mm)

• Net Weight (kg)

66kg

• Weight with Packing (kg)

90kg

• Cabinet Material

SUS304 Stainless Stee

• Lid Material

Acrylic

• Barrier Material

SUS304 Stainless Steel

• Barrier Movement

Rotating

• Emergency Mode

Supports

• Security Level

Medium

• MCBF

2 million

• Options / Accessories

Counter, Card Receiver Box, SUS316 Cabinet and Lid, Remote Control

• Warranty

1 year

Latest Best price of Tripod turnstile gate in Dhaka-Bangladesh 2024

ZKTeco TS2000 Pro Series

Our Pro series tripod turnstiles represent classic and safe way to protect your premises. They are used in various indoor environment applications. They fit perfectly as an economical option in the office buildings and other related applications.

• Power Requirements

AC 100V to 120V or 200V to 240V, 50/60Hz

• Power Consumption

Running:18W
Standby:6W

• Working Temperature

-28°C to 60°C

• Working Humidity

5% to 80% ( Non-condensing )

• Speed of Throughput

RFID:Maximum 30/minute
Fingerprint:Maximum 25/minute

• Lane Width (mm)

505 ( mm )

• Footprint (mm*mm)

785*1110 ( mm )

• Dimension (L*W*H)

1110*280*987 ( mm )

• Dimension with Packing (L*W*H)

1175*370*1070 ( mm )

• Net Weight (kg)

42 kg

• Weight with Packing (kg)

48 kg

• LED Indicator

Supports

• Cabinet Material

SUS304 Stainless Steel

• Lid Material

SUS304 Stainless Steel

• Barrier Material

SUS304 Stainless Steel

• Barrier Movement

Rotation

• Emergency Mode

Supports

• Security Level

Medium

• MCBF

1 million

• Options / Accessories

Counter, SUS316 Cabinet and Lid, Remote Control

• Warranty

1 year

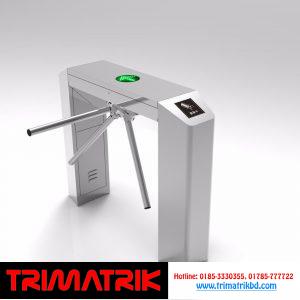

Automatic three roller gate

It has a power failure emergency function, the brake lever will automatically drop when the power is turned off, and the hand will lift the lever when the power is on. It is compatible with IC/ID card swiping, QR code scanning, fingerprint/ face recognition, and human-identity comparison system, etc. With standard input and output interfaces, it is the best choice for system integrators.

◇Compatible with multiple control devices such as IC/ID swiping, QR code scanning, fingerprint/face recognition, and human-identity comparison system

◇The brake lever is unlocked quickly and reliably

◇With emergency off function, automatic power off brake lever rod, hand carried to power lever

◇Control panel with memory function

◇With standard input and output interfaces, it is the best choice for system integrators.

◇With fault self-test and alarm functions, user maintenance and use.

◇It can be connected to the output control signals, buttons, and remote controls of any external control equipment to achieve single and two-way control.

◇One-way and two-way free passage can be set arbitrarily.

Technical Parameters：

1、Shell material: SUS304 stainless steel

2、Maximum bearing capacity of brake lever: 80Kg.

3、Specification size: length 1200 × width 330 × height 980 (mm)

4、Weight: about 70KG.

5、Stroke length/thickness: 500 (mm)/Φ38 stainless steel tube.

6、Working brake lever driving force: 3Kg.

7、Motor: 24V/30W DC.

8、Adaptation Temperature: -40 ℃ ~ 80 ℃.

9、Adaptation Humidity: 5% – 90%

10、Gate opening time: 0.2 seconds

11、Delay reset time: 3S, 5S, 10S, 20S adjustable

12、Passing speed: about 30 people/min

13、Shell processing technology: laser, bending, cutting, welding, polishing, grinding and other processes are used for production.

14、Working environment: indoor and outdoor

Scope of application

◎Quarters, factories, railway stations, docks, tourist attractions, import and export channel management

◎Ticket inspection channel management for exhibitions, swimming pools, etc.

◎Import and export attendance, access control, consumption management of enterprises and institutions

◎Special control channel

Latest Tripod Turnstile Gate Price in Bangladesh – December, 2024
