Description

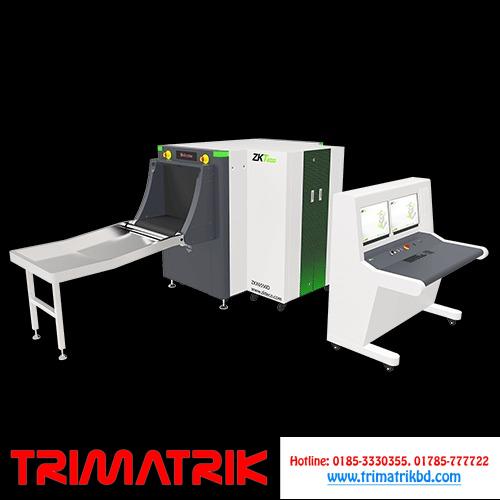

ZKTECOZKX6550D

• Tunnel Size

  W650mm × H500mm

• Speed

  0.20 m/s

• Height of Transmission Belt

  650 mm

• Maximum Load

  ≤180 kg (Adequate distribution)

• Wire Resolution

  Bottom Generator: 34AWG \ Side Generator: 34AWG

• Space Definition

  Horizontal Φ1.0mm \ Vertical Φ2.0mm

• Penetrate Definition

  Bottom Generator: 32AWG \ Side Generator: 32AWG

• Penetrate Definition

  Bottom Generator: 34mm \ Side Generator: 34mm

• Monitor

  21.5 inch LED x 2

• System Function

  High density alert, Explosive / Drug auxiliary detect, TIP, Luggage counter, date / time display, User management, Training.

• Film Safety

  ASA / ISO1600 standard of film safety

• X-ray System



• Tube Voltage

  80-160kV (adjustable)

• Cooling

  Seal oil cooling / 100%

• Tube Current

  0.3-1.0 mA(adjustable)

• Radiation Leak Dosage

  0.3 μ Gy/h (5cm from the surface)

• Installation Specification



• Size (L*W*H)

  2141 * 1316 * 1440 (mm)

• Console Desk Size (L*W*H)

  1320 * 900 * 1320 (mm)

• Package Size (L*W*H)

  2340 * 1530 * 1680 (mm)

• Package Weight

  580KG + 135KG (Console desk)

• Power Consumption

  1.0 kVA

• Noise

  55 dB(A)
