Description

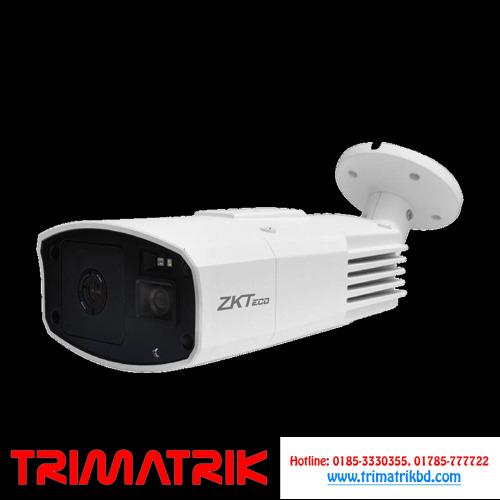

ZKTECO ZN-T95

• Thermal Camera



• Thermal Detector

  Uncooled IRFPA Microbolometer

• Effective Pixels

  384(H) * 288(V )

• Pixel Size

  17um

• Thermal Sensitivity (NETD)

  < 60mk (@25C, F#=1.0, 300K, 50Hz)

• Spectral Range

  8 ~ 14um

• Image Setting

  Polarity LUT / DVE / Mirror / FCC / 3D DNR Brightness / Contrast / ROI

• Color Mode

  Black-Heat / White-Heat / Rainbow

• Lens Type

  Fixed

• Focus Control

  Manual

• Focal Length

  9.1mm

• Focal Length

  9.1mm

• Iris

  F1.2

• FOV

  H: 39°, V: 30°

• Image Sensor

  1/2.8” Sony CMOS

• Effective Resolution

  1920(H) * 1080(V )

• Shutter Speed

  1/50 ~ 1/64,000s

• Wide Dynamic Range

  True WDR 120dB

• Min. Illumination

  Color: 0.1Lux @ (F1.2, AGC ON)
  B/W: 0.01Lux @ (F1.2, AGC ON)

• S / N Ratio

  More than 55dB

• Focal Length

  8mm

• Max Aperture

  F1.4

• FOV

  105° ~ 32°

• Focus Control

  Manual

• Compression

  H.265, H.264

• Frame Rate

  NTSC
  main stream: 1920X1080@30fps
  sub-stream: D1@30fps
  PAL
  main stream: 1920X1080@25fps
  sub-stream: D1@25fps

• Bit RateControl

  CBR / VBR

• Bit Rate

  Visible:
  main stream: 16Kbps-8Mbps
  sub-stream: 16Kbps-8Mbps

• Region of Interest

  Off / On (4 rectangular zones)

• Digital Zoom

  16x

• Defog

  Support

• Motion Detection

  Support

• DVE Image Enhancer

  Support

• Audio Compression

  G.711, AMR, RAW_PCM (Optional)

• Detection Mode

  Body temperature monitoring

• Detection Preset

  Max.22 goals

• Temperature Alarm

  Out-of-range temperature alarm, temperature difference alarm

• Accuracy

  ≤ 0.3°C (Emission rate, distance, ambient temperature, etc.)

• Response Time

  ≤50ms

• Detection Range

  30°C ~ 45°C (86°F ~ 113°F)

• Temperature Display Mode

  If temperature difference >5°C, display absolute temperature value;
  If temperature difference ≤5°C, display relative temperature value
  (temperature difference DEV = highest value – average)

• Ethernet

  RJ-45 (10 / 100Base-T)

• Protocol

  IPv4 / IPv6, HTTP, RTSP / RTP / RTCP, TCP / UDP, DHCP, DNS, PPPOE, SMTP, SIP, 802.1x

• Interoperability

  ONVIF, CGI, SDK

• Streaming Method

  Unicast

• Max. User Access

  8 Users

• Web Viewer

  < IE11, Chrome, Firefox

• Web Language

  English, Chinese

• Ethernet

  1 Ethernet (10 / 100 Base-T)
  RJ-45 Connector

• Alarm

  2ch Alarm-In, 2ch Alarm-Out

• RS485

  Support

• BNC Output

  N/A

• Power Supply

  DC12V / POE (IEEE 802.3af )

• Power Consumption

  Max 10W

• Operating Temperature

  -20°C ~ 50°C (-4°F ~ 122°F)

• Storage Conditions

  0 ~ 90% RH

• Certifications

  CE

• Ingress Protection Rating

  IP65

• Casing

  Metal

• Dimension

  315.15 * 48.44 * 71.26 (mm) (L*W*H)

• Net Weight

  2.6kg
