Description

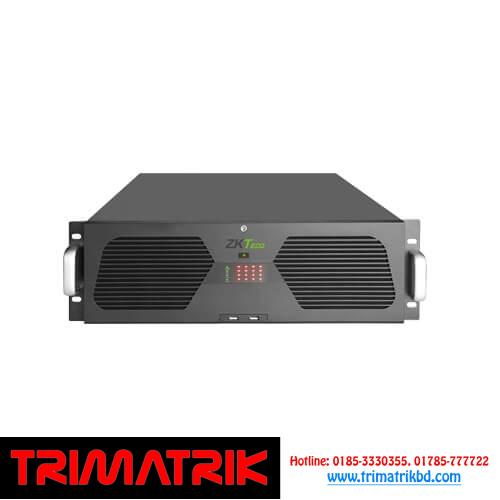

ZKTECOZ85128NTR

• Model

  Z85128NTR

• System



• Main Processor

  Multi-core embedded processor

• Operating System

  Embedded LINUX

• Video and Audio



• Max. IPC Input

  128CH

• Two-way Talk

  Support

• Audio Compression

  G.711u

• Live View



• Display Split

  1 / 4 / 6 / 8 / 9 / 16 / 36 / 64 / 128 CH

• Resolution

  8MP (3840 * 2160) / 5MP (2592 * 1944) / 2MP (1920 * 1080) / 1.3MP (1280 * 1024) / 1MP (1280 * 720) / D1 (1024 * 768)

• Live View Capability

  36CH@D1 (25 / 30fps)

• Recording



• Video Compression

  H.265+ / H.265 / H.264

• Recording Resolution

  8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1

• Max. Decoding Capability

  36CH@D1 (25 / 30fps)

• Incoming Bandwidth

  640 Mbps

• Bit Rate

  Main Stream: 256Kbps ~ 8192Kbps
  Sub Stream: 50Kbps ~ 700Kbps

• Record Mode

  Schedule, Manual, Motion Detection, IVA Events Alarm

• Record Interval

  1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

• Playback and Backup



• Playback Channel

  16CH

• Search Mode

  Time/ Date, Alarm Types, IVA Search, Face Retrieval

• Playback Function

  Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward,
  Fast Play, Slow Play, Single Frame Play, Hide / Show Time Bar, Backup, Snapshot, Full Screen

• Backup Mode

  USB Device / Network Remote

• IVA Alarm



• Local IVA Functions

  Line Crossing / Target Counting / Object Left / Lost / Intrusion / Scene Change / VQD

• Regular Detection

  Motion Detection / Video Shelter / Video Loss

• AI Search

  Support search target video by multiple intelligent conditions

• Network



• Network Protocol

  TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P

• Max. Online Users

  5

• Web Browser

  Internet Explorer

• Operation System

  Windows

• Management Platform

  AntarVis 2.0

• Mobile Application

  AntarView Pro (iOS & Android)

• P2P Cloud Service

  Support

• Interoperability

  ONVIF Profile S, SDK, CGI, API

• Storage & Auxiliary Interface



• SATA Ports

  16 SATA Ports, up to 8 TB capacity

• eSATA

  N/A

• Raid 0 /1 / 5 / 6 / 10

  Support

• HDMI

  2 * HDMI (4K)

• VGA

  2 * VGA (1080P)

• Network Interface

  1 RJ – 45 Port (1,000Mbps)

• PoE Ports

  N/A

• USB

  2 * USB 2.0, 1 * USB 3.0

• Audio Input / Output

  1/1

• Alarm Input / Output

  4/4

• RS-485

  Support

• Power



• Power Supply

  AC100 ~ 240V, 47Hz ~ 63Hz

• Power Consumption

  50W (Without HDD)

• General



• Casing

  3U

• Working Temperature

  -10°C ~ 55°C / 14°F ~ 131°F

• Working Humidity

  10% ~ 90%

• Dimensions (L*W*H)

  430 * 483 * 143 (mm)

• Net Weight

  18.5kg (without HDD)

• Gross Weight

  19kg (without HDD)

• Order Information



• Name

  NVR

• Model

  Z85128NTR

• Description

  128CH H.265+ NVR, 16SATA
