Description

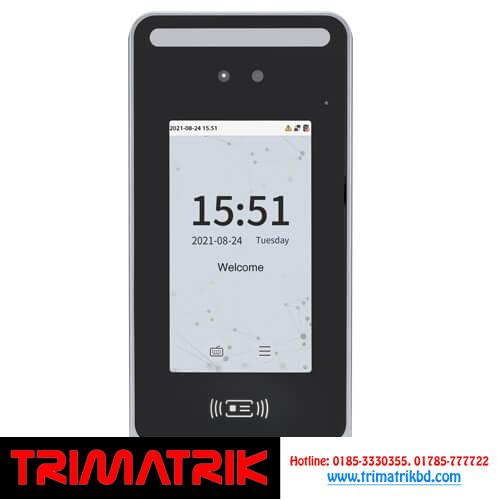

ZKTECOSpeedFace M4

• Display

  5″ Touch Screen

• Face Capacity

  6,000 (Optional:10,000)

• Palm Capacity

  3,000 (Customized)

• Card Capacity

  10,000

• Transaction Capacity

  200,000（Optional: 500k）

• Operation System

  Linux

• Functions

  ID Card, ADMS, DNS, T9 Input, DST, Camera, 9-digit User ID, Advance Access Control, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Bell Scheduling, POE (Optional, IEEE 802.3at-2009)

• Hardware

  1GHz Dual Core CPU / 1G RAM / 8G Flash / 2MP WDR Low Light Camera / Adjustable LED Supplement Lighting / Rain Cover (Optional)

• Communication

  TCP / IP, Wi-Fi (Optional), Wiegand Input / Output, RS485*

• Access Control Interface

  3rd-party Electric Lock, Door Sensor, Exit Button, Alarm Output, Aux. Input

• Optional Card Module

  IC / HID / iClass / Felica / Desfire EV1 / EV2 / Legic

• Facial Recognition Speed

  ≤ 0.5s per face

• Biometrics Algorithm

  ZKFace V3.9 & ArmaturaPalm (Customized)

• Ingress Protection Rating

  IP66

• Power Supply

  Voltage: DC 12V
  Current: Max. 3A

• Operating Humidity

  10% to 90%

• Operating Temperature

  -10°C to 50°C

• Dimension

  103.83 * 212.41 * 50.60 (mm) (W*H*D)

• Supported Software

  ZKBio CVAccess
