Description

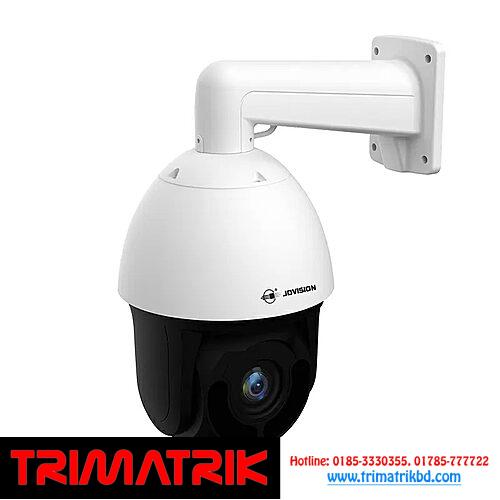

JOVISION JVS-N83-Z25 2MP 25x Zoom Starlight AI PTZ Camera
| Model | JVS-N83-Z25 |
| Camera | |
| Image Sensor | 1/2.9″ CMOS |
| Max Resolution | 1920×1080 |
| Effective Pixels | 2.0 Mega Pixels |
| Optical Zoom | 25x Zoom |
| Compression Standard | H.264/H.265 |
| Maximum Frame Rate | Up to 25 fps |
| Bit Rate | 204Kbps~8Mbps |
| Illumination | 0 Lux (IR ON) |
| Focus Control | Auto/ Semi-auto/ Manual |
| Infrared | 4 IR LEDs + 4 White Lights |
| Distance | 120m |
| Function | |
| OSD | Support |
| Image Enhancement | BLC/ HLC/ 3D DNR/ DWDR/ Defog |
| Video Adjust | Supports Contrast, Brightness, Saturation, Sharpness Adjustment |
| Audio | Support audio monitoring, intercom |
| Image Setting | Rotate, Saturation, Brightness, Contrast, Sharpness |
| Alarm | E-mail, Client |
| Network Protocols: | HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS |
| Intelligent Analysis | Support Human Tracking, Region Intrusion, Line Crossing, Video Occlusion, Virtual Focus Detection, Fast Movement, Leftover Picking, Passenger Flow Statistics, Sound Anomaly Detection |
| Remote Operation | System, Stream, Alarm, Network, Storage Management, PTZ |
| Expansion Interface | Audio Input, Audio Output, SD Card (Up to 256GB) |
| PTZ | |
| Pan/Tilt Range | Pan: 0°~360°; Tilt: 0°~90° |
| Pan Speed | 0°~40°/S |
| Tilt Speed | 0°~40°/S |
| Number of Preset | 1024 |
| Patrol | Up to 2 Patrols |
| Trajectory scan | 4 |
| Scan | Patrol Scan, Pattern Scan, Tilt Scan, Frame Scan, Random Scan |
| Control | RS232 |
| Network | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP, ICMP.RTSP, RTP, UDP, RTCP, SMTP, DHCP, DDNS |
| Stream | 2x Streams |
| Wi-Fi | Not Supported |
| LAN | Support |
| System Compatibility | Standard ONVIF |
| User | Up to 13 Users |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02 |
| Smart Phone | iOS/Android |
| General | |
| Power Supply | DC12V/3.33A |
| Power Consumption | ≤ 25W |
| Operating Temperature | -20°C ~ +60°C |
| Operating Humidity | 0% – 93% Rh Non-Condensation |
| Product Dimensions | 205x325X389 (mm) |
| Weight | 2490g |
