Description

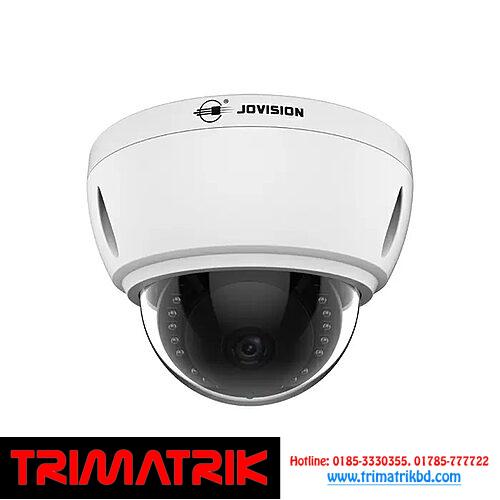

JOVISION JVS-TS3622 Overhead Counting PoE Dome Camera
| Model | JVS-TS3622 |
| Video | |
| Image Sensor | 1/2.9” CMOS |
| Max Resolution | 1920×1080 |
| Effective Pixels | 2.0MP |
| Compression Standard | H.265/H.264 |
| Maximum Frame Rate | 1080p@30fps / 960p@30fps |
| SNR(dB) | 52.1dB |
| Bit Rate | Main: 25～8129Kbps Sub: 25~4068Kbps |
| Illumination | 0Lux(IR On) |
| Lens | |
| Lens | 2.8mm |
| Viewing Angle | H:97.37° V:52.49° D:114.55° |
| IR-LEDs | 18x IR LEDs |
| IR-Distance | Up to 20 Meters |
| Function | |
| Motion Detection | Support |
| Email Alert | Support |
| Day& Night | Support |
| Recording | Support (NVR, Windows PC, Smartphone) |
| DHCP | Support |
| Audio Input | Support (Ext. Mic) |
| Audio Codec | Support (G711A/G711U) |
| Privacy Mask | Support up 8 areas |
| Exposure Control | Support |
| Image Adjustment | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
| Intercom | Not Supported |
| Face capture | Supports detection, tracking, capture, screening, and output of optimal face capture, human traffic statistics, heartbeat mode With DeepCloud Platform |
| Capture resolution | 1920×1080 |
| Maximum face per frame | 32 |
| Image Format | JPEG |
| Upload method | Private protocol, HTTP upload, FTP upload |
| Capture mode | After taking off capture, track process capture, mix capture, interval capture |
| Network | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Stream | 2x Streams |
| LAN | Support |
| ONVIF | ONVIF 2.4 |
| User | Up to 13 Users |
| Browser | IE8+ |
| Smart Phone | iOS/Android |
| General | |
| Dimensions (WxHxD) | φ120×90 (mm) |
| Weights | 500g |
| Material | Aluminum |
| Working Temperature | -20°C～60°C |
| Humidity | RH 10%～90% |
| Power Supply | DC12V/2A, PoE (IEEE 802.3af) |
| Consumption | Day ≦3W; Night ≦7W |
| Waterproof | IP66 |
