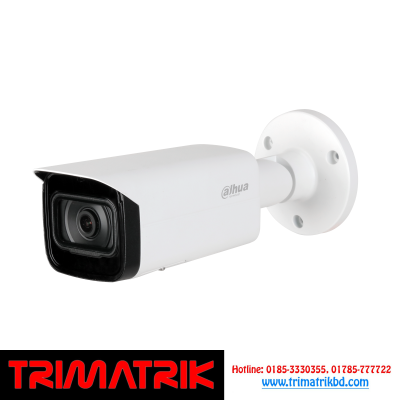

Dahua DH-IPC-HFW2431TP-AS-S2 4MP Lite IR Fixed-focal Bullet Network Camera in Bangladesh
Specification:
| DH-IPC-HFW2431TP-AS-S2 4MP Lite IR Camera | ||
| Image Sensor | 1/3” 4Megapixel progressive CMOS | |
| Max. Resolution | 2688 (H) × 1520 (V) | |
| ROM | 128 MB | |
| RAM | 128 MB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
| Min. Illumination | 0.008 Lux@F1.6 | |
| S/N Ratio | > 56 dB | |
| Illumination Distance | 80 m (262.5 ft) | |
| Illuminator On/Off Control | Auto/Manual | |
| Illuminator Number | 4 (IR LED) | |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | |
| Smart Event | ||
| IVS | Tripwire; intrusion | |
| Video | ||
| Video Compression | H.265; H.264; H.264B; MJPEG(only supported by the sub stream) | |
| Smart Codec | Smart H.265+/ Smart H.264+ | |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) | |
| Stream Capability | 2 streams | |
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
| Bit Rate Control | CBR/VBR | |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps | |
| Day/Night | Auto(ICR)/Color/B/W | |
| BLC | Yes | |
| HLC | Yes | |
| WDR | 120 dB | |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D NR | |
| Motion Detection | OFF/ON (4 areas, rectangular) | |
| Region of Interest (RoI) | Yes (4 areas) | |
| Smart Illumination | Yes | |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower) | |
| Mirror | Yes | |
| Privacy Masking | 4 areas | |
| Audio | ||
| Audio Compression | G.711a; G.711Mu; G.726 | |
| Alarm | ||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm | |
| Network | ||
| Network | RJ-45 (10/100 Base-T) | |
| SDK and API | Yes | |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P | |
| User/Host | 20 | |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 GB); NAS | |
| Browser | IE Chrome Firefox | |
| Management Software | Smart PSS; DSS; DMSS | |
| Mobile Phone | IOS; Android | |
| Certifications | ||
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |
| Port | ||
| Audio Input | 1 channel (RCA port) | |
| Audio Output | 1 channel (RCA port) | |
| Alarm Input | 1 channel in: 5mA 3V–5V DC | |
| Alarm Output | 1 channel out: 300mA 12V DC | |
| Power | ||
| Power Supply | 12V DC/PoE (802.3af) | |
| Power Consumption | < 7.7W | |
| Environment | ||
| Operating Conditions | –40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH | |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) | |
| Protection Grade | IP67; IK10(optional) | |
| Construction | ||
| Casing | Metal | |
| Dimensions | 244.1 mm × Φ90.4 mm (9.61″ × Φ3.26″) | |
| Net Weight | 0.91 kg (2.0 lb) | |
| Gross Weight | 1.16 kg (2.6 lb) | |
| Lens | ||
| Lens Type | Fixed-focal | |
| Mount Type | M12 | |
| Focal Length | 3.6 mm; 6 mm; 8 mm | |
| Max. Aperture | 3.6 mm: F1.6 6 mm: F1.6 8 mm: F1.6 | |
| Field of View | 3.6 mm: Horizontal 84° × Vertical 45° × Diagonal 100° 6 mm: Horizontal 52° × Vertical 28° × Diagonal 61° 8 mm: Horizontal 40° × Vertical 23° × Diagonal 45° | |
| Close Focus Distance | 3.6 mm: 1.4 m (4.6 ft) 6 mm: 3.1 m (10.2 ft) 8 mm:4.9 m(16.1 ft) | |
| Iris Type | Fixed | |
Dahua DH-IPC-HFW2431TP-AS-S2 Price in Bangladesh 2024
| Price: | |
| Brand: | Dahua |
| Model: | DH-IPC-HFW2431TP-AS-S2 |
| Item: | Dahua IP Camera |
| Contact No: | +88 0185-3330344 |
| Hotline: | +88 01785-777722 |
| Warranty: | One Year |
