Description

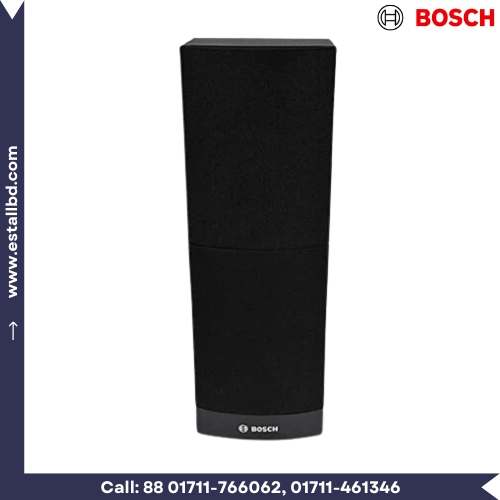

Bosch LBD3903-D 12W Black Wall Cabinet Loudspeaker
BOSCH LBD3903-D 12W Cabinet Loudspeaker is a 12W, general-purpose, cost effective loudspeaker for indoor use. Keyholes at the rear are provided for quick and easy wall mounting.The angled front baffle results in a better sound in the listening area. The cabinet is available in black or white. The robust, solid MDF (Medium Density Fiber board) enclosures are covered with a durable, easy-to-clean vinyl in white or black. The ABS fronts are covered with fine woven cloth in matching color. BOSCH LBD3903-D 12W Cabinet Loudspeaker has been tested for operation at rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards Three keyholes in the rear panel provide easy and quick wall mounting. A convenient, easy-to-use, 4-pole push-in terminal block is on the rear panel for on-site wiring. This terminal block has provision for power tapping on the 100-volt, matching transformer in the cabinet. It allows selection of nominal full-power, halfpower or quarter power radiation (in 3 dB steps).
Technical Specifications
Manufacturer | Bosch |
Brand | Bosch |
Model No | LBD3903-D |
Model Series | Cabinet Speaker |
Product Type | Cabinet Loudspeaker (Home Theatre) |
Speaker Type | Wall Speaker |
Suitable for | Speech Restaurants Schools & Retail Chain |
Maximum Power | 18 W |
Rated Power | 12 W |
Sound Pressure Level at 6 W/1 W (1 khz at 1m) | 101dB/90dB |
Effective Frequency Range (-10 dB) | 200-1500 Hz |
Opening angle at 1khz/4 khz (-6 dB) | 150° / 70° |
Opening angle horizontal(1khz/4khz,-6dB) | 195°/95° |
Opening angle vertical(1khz/4khz,-6dB) | 70°/20° |
Rated Input Voltage | 100 V |
Rated Impedance | 833 ohm |
Operating Temperature | -5 °C to +55 °C |
Storage Temperature | -40 °C to +70 °C |
Connector | 4 Pole Push In Terminal |
Usages/Application | For applications where directivity is important |
Product Material | Metal |
Color | Black |
Weight | 2.6 Kg |
Product Dimension | 21.1 x 21.1 x 49.5 cm |
What is the price of Bosch LBD3903-D 12-Watt Black Wall Cabinet Loudspeaker in Bangladesh?
The latest price of Bosch LBD3903-D 12-Watt Black Wall Cabinet Loudspeaker in Bangladesh is ৳ 9,500.00. You can buy the Bosch LBD3903-D 12-Watt Black Wall Cabinet Loudspeaker at best price from our website or visit any of our showrooms.
