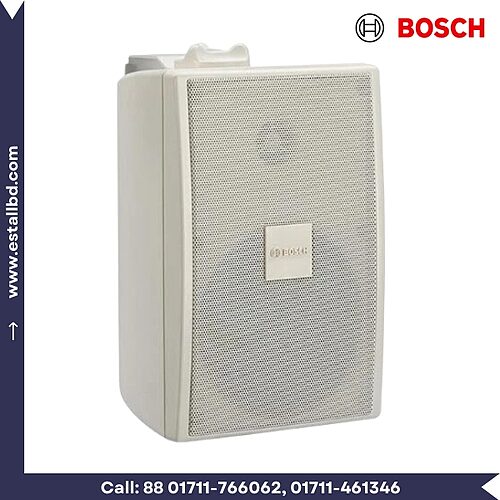

Bosch LB2-UC15-L1 15-Watt Premium Sound White Cabinet Loudspeaker

  • Model: LB2-UC15-L1
  • Maximum Power: 18 Inch
  • Maximum Power: 22.5 W
  • Rated Power: 15 W
  • Weight: 1.9 kg
SKU: LB2-UC15-L1 Category:

Description

Bosch LB2-UC15-L1, 15W, Premium Sound Cabinet Loudspeaker, White

BOSCH LB2-UC15-D1 15W Cabinet loudspeaker is intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications. BOSCH LB2-UC15-D1 15W Cabinet loudspeaker consists of a 15 W model, available in a dark color. The loudspeaker has selectable 8 ohm, 70 V and 100 V inputs.. The ABS cabinets are fitted with aluminum front‑grilles and standard supplied with aluminum bracket. Typical applications are: theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centers and presentation environments.All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations.This ensures improved reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and lessons the chance of failure or performance deterioration.

The cabinets include a built‑in transformer that offers a selection of nominal full power, half power, quarter power or eight power radiation (i.e. in 3 dB steps) for 70 V, 100 V or 8 Ohm bypass. Selection is done by a convenient switch on the rear Enclosure.A two meter long twin‑core loudspeaker cable (in matching color with the cabinet) is connected to the loudspeaker. The core ends are stripped ready for use.The mounting brackets are fitted with anti‑theft torx screws, covered with plastic covers in matching color of the cabinets.The cabinets can be mounted horizontally to allow the, loudspeaker to be directed up or down, or vertically to allow left and right rotation by means of a steel U shaped wall bracket (standard supplied).The rotatable logo can be easily adjusted to match the mounting orientation.

Technical Specifications

ManufacturerBosch
BrandBosch
Model NoLB2-UC15-L1
Model SeriesPremium Sound Cabinet Loudspeaker
Product TypeCabinet Loudspeaker
Speaker TypeWall Speaker
Suitable forSpeech Restaurants Schools & Retail Chain
Size18 Inch
Maximum Power22.5 W
Rated Power15 W
Sound Pressure Level at 6 W/1 W (1 khz at 1m)99/87 dB (SPL)
Effective Frequency Range (-10 dB)95 Hz to 20 kHz
Opening angle horizontal(1khz/4khz,-6dB)179° / 101°
Opening angle vertical(1khz/4khz,-6dB)168° / 35°
Rated Input Voltage100 V
Rated Impedance667 ohm
Transducers101.6 mm (4”) woofer, 13 mm (0.51 “) dome tweeter
Power Tapping15/7.5/3.75/1.9 W
Operating Temperature-25 C to +55 C
Storage Temperature-40 ºC to +70 ºC
Relative Humidity95%
Connection2 m (78.8 in.) two wire cable
Product MaterialABS
ColorWhite
Weight1.9 kg
Product Dimension21 x 17 x 25 cm

What is the price of Bosch LB2-UC15-L1 15-Watt Premium Sound White Cabinet Loudspeaker in Bangladesh?

The latest price of Bosch LB2-UC15-L1 15-Watt Premium Sound White Cabinet Loudspeaker in Bangladesh is ৳ 0.00. You can buy the Bosch LB2-UC15-L1 15-Watt Premium Sound White Cabinet Loudspeaker at best price from our website or visit any of our showrooms.
