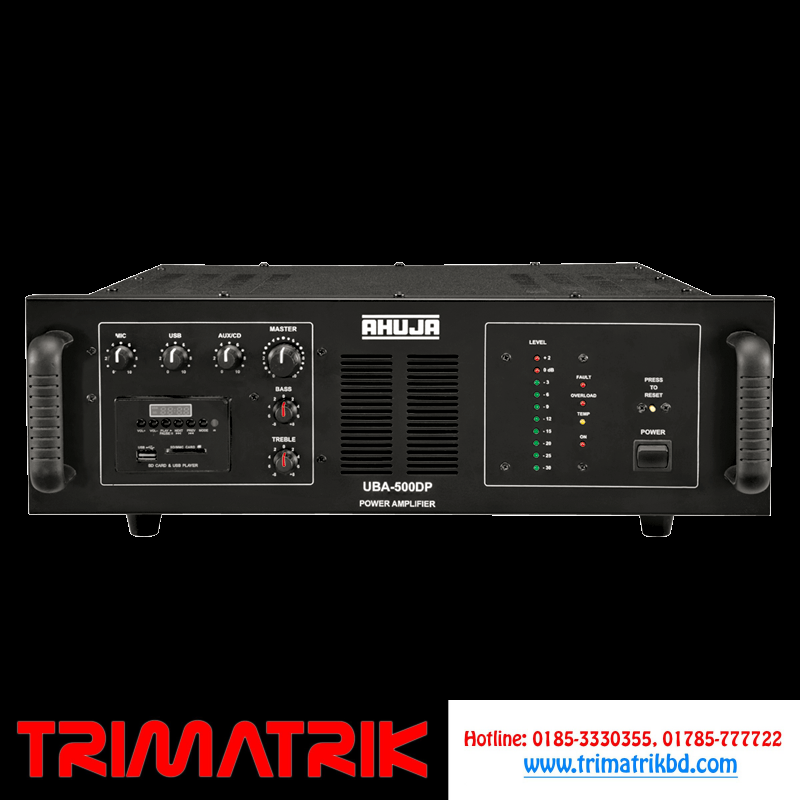

Ahuja UBA-500DP 500 WATTS with Built-in Digital Player DJ & PA POWER AMPLIFIER

  • Designed for use in a wide variety of PA applications and DJ performances.
  • Built-in MP3 player with remote control for USB, SD/MMC card reader and Bluetooth facility.
  • UBA-500DP is a 500 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
  • Bass and Treble controls provided for precise and accurate tonal setting of the programme.precise and accurate tonal setting of the programme.
  • Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
  • Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
  • The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
  • Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
  • 2Ω speaker matching provided in addition to 4 & 8Ω.

Ahuja UBA-500DP

Power Output650W RMS Max., 500W RMS at 10%THD, 475W RMS at 5% THD 450W RMS at 2% THD
Output Regulation≤ 2dB, no load to full load at 1kHz
Input Channels1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 20kΩ
Frequency Response50Hz–18,000Hz ±3dB
Signal to Noise Ratio60dB
Tone ControlsBass (100Hz) : ± 8dB, Treble (10kHz) : ± 8dB
Line Output1V/1kΩ
Speaker Output2Ω, 4Ω  & 8Ω
Digital PlayerMP3 Player with USB, SD, MMC Card Reader & Bluetooth
Power SupplyAC: 220-240V 50/60Hz
Protections2 × 20 Amp fuse in ± DC supply 5 Amp circuit breaker in AC mains Protected against high AC mains voltage, overload & temperature
Power Consumption1000 VA
DimensionsW482 × H166 × D435 mm
Weight23.5kg
