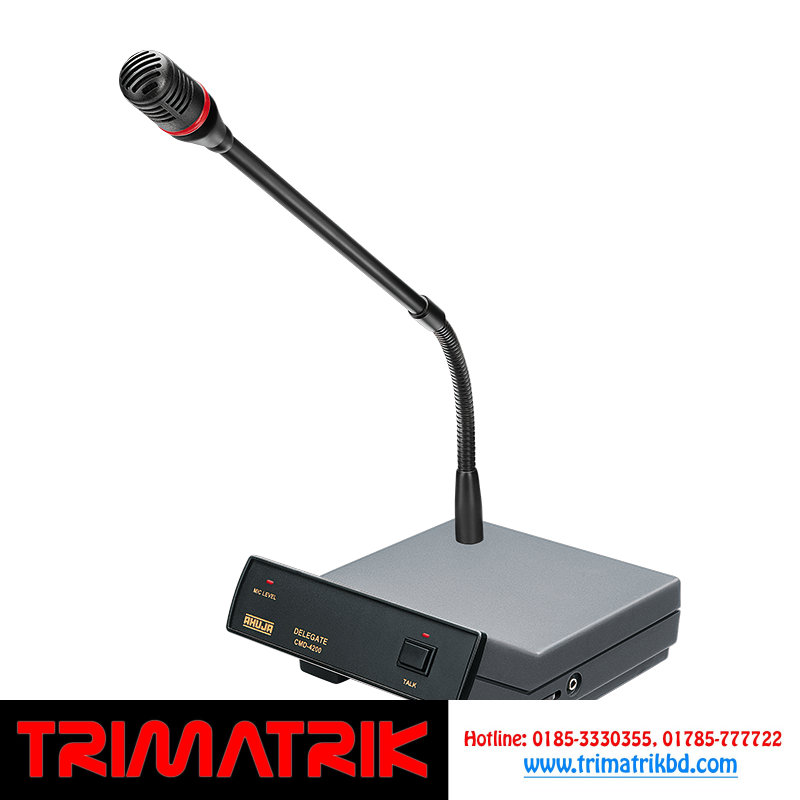

Ahuja CMD-4200 Delegate Unit
- The CMC-4100 Chairman and CMD-4200 Delegate Units have built-in loudspeakers and high quality sensitive electret condenser transducer mounted on 16″ flexible goosenecks. The microphones of the units are equipped with a Ring LED indicator for easy visual identification of the unit in operation. Each unit has a headphone output with volume control.
- The stylish, free-standing cast aluminium case has an angled facia incorporating the TALK switch which automatically mutes the internal speaker.
- The Chairman Unit also has a non-lockable PRIORITY switch which interrupts the meeting with a chime tone and mutes the delegates’ microphones. Both units have recessed volume controls for setting desired sound levels.
- The matching CMS-4300 Secretary Unit has a built-in loudspeaker and a headphone output with volume control. The Secretary Unit enables proceedings to be recorded through a cassette recorder, for a stenographer present to take notes and to relay pre-recorded messages or music to delegates.
Ahuja CMD-4200
Microphone | -63dBV/µbar (7.5mV/Pa) |
Current Consumption | < 50mA Max. |
Mic Auto Switch-Off Time | 75 seconds approx. |
Input | Line |
Output | Line, Headphone with Volume Control |
Speaker | Max Input 300mW Impedance 16Ω |
Controls | Priority Switch, Talk Switch, Speaker Volume Control, Headphone Volume Control |
Dimensions | W145×H75×D180 mm |
Weight | 1.30kg (w/o cable) |
Accessories | Foam Windshield, 2.5m Interconnecting Cable |
