Ahuja CD-100

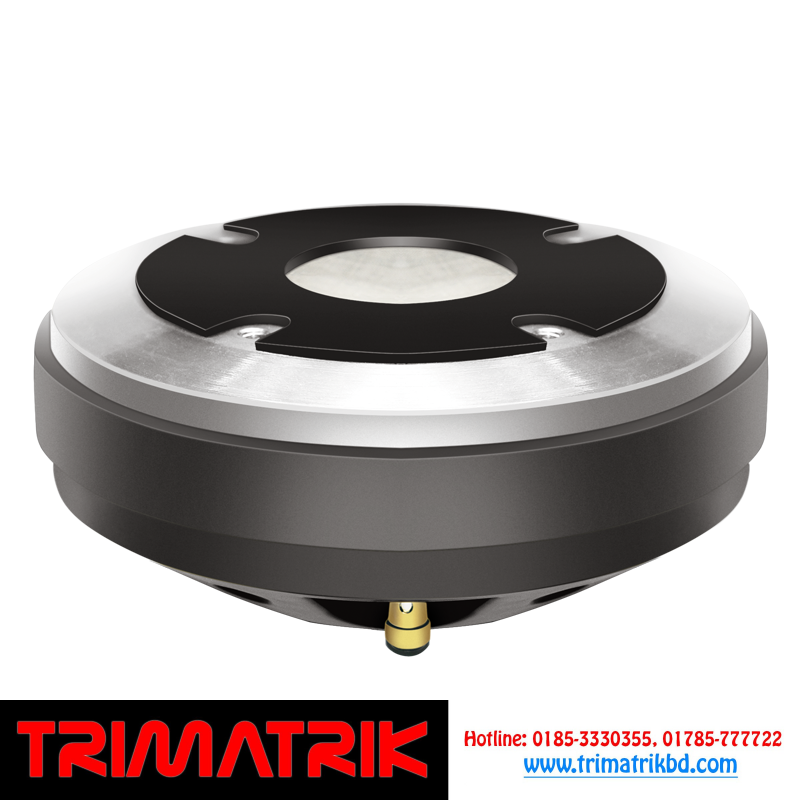

Ahuja CD-100 100 Watts Compression Driver

Ahuja introduces a 100W, 2” throat compression driver model CD-100, suitable for use with high power LF speaker systems. It features Titanium diaphragm and Aluminium Ribbon Wire voice coil for delivering loud and crisp Mid & High frequency response. Suitable for use with HF horn similar to Ahuja model H-7380.

Category:

Description

Ahuja CD-100 100 Watts Compression Driver

Throat Diameter50 mm (2″)
Mounting TypeBolt-On
Nominal Impedance8ohm
D.C. Resistance6.5ohm
Power Capacity100W RMS
Sensitivity 1W/1M108dB with H-7380
Usable Frequency Range500Hz – 18kHz
Recommended Crossover1.2kHz 18 dB/oct
Voice Coil Diameter72.2 mm (2.84″)
MagnetStrontium Ferrite
DiaphragmTitanium
Voice Coil MaterialEdge Wound Aluminium Ribbon Wire
Voice Coil FormerResin Bonded Nomex
Weight4.7kg approx.
Ahuja CD-100
Ahuja CD-100
