Description

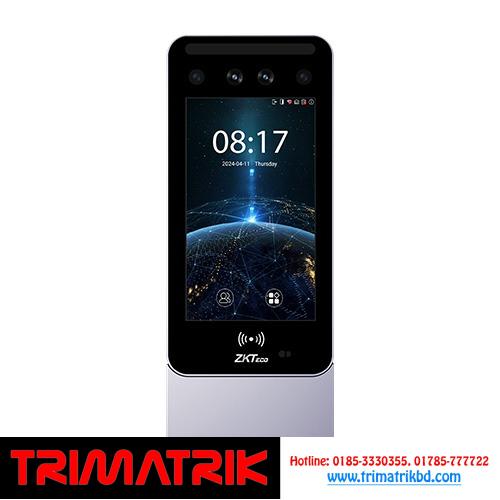

ZKTEOHorus E2

• Model

  Horus E2
  Horus E2-FP
  Horus E2-B
  Horus E2-QR

• Display

  5″ @ TFT Color Touch LED Screen (720*1280)

• Camera

  Dual Camera @ 2MP

• Operation System

  Android 10.0

• Hardware

  CPU: Octa-core @ 2.0 GHz
  RAM: 2GB; ROM: 16GB
  Speaker: 7ohm @1.14W
  Sensitivity: -36 dB / Omni-directional / Signal-to-Noise Ratio: 60 dB / Impedance: 2.2KΩ
  Supplement Light: Yes

• Authentication Method

  Face / Card / Password (Virtual Keypad) / Fingerprint (Optional) / QR Code (Optional)

• Fingerprint Template Capacity

  Horus E2: N/A
  Horus E2-FP: 30,000 (1:N)
  Horus E2-B: N/A
  Horus E2-QR: N/A

• Face Template Capacity

  20,000(1:N)

• Card Capacity

  50,000(1:N)

• User Capacity

  50,000

• Transaction Capacity

  200,000

• Max. User Password Length

  8 Digits

• Biometric Authentication Speed

  Horus E2: less than 1 sec (Facial Authentication)
  Horus E2-FP: less than 0.5 sec (Fingerprint); less than 1 sec (Facial Authentication)
  Horus E2-B: less than 1 sec (Facial Authentication)
  Horus E2-QR: less than 1 sec (Facial Authentication)

• Touchless Biometric Recognition Distance

  30 cm to 100 cm (Facial Authentication)

• False Acceptance Rate (FAR) %

  Horus E2: FAR ≤ 0.01% (Visible Light Facial Authentication)
  Horus E2-FP: FAR ≤ 0.01% (Visible Light Facial Authentication); FAR≤ 0.0001% (Fingerprint ; ZKFingerprint V10.0; ZKFingerprint V13.0)
  Horus E2-B: FAR ≤ 0.01% (Visible Light Facial Authentication)
  Horus E2-QR: FAR ≤ 0.01% (Visible Light Facial Authentication)

• False Rejection Rate (FRR) %

  Horus E2: FRR ≤ 0.02% (Visible Light Facial Authentication)
  Horus E2-FP: FRR ≤ 0.02% ( Visible Light Facial Authentication); FRR≤ 0.01% (Fingerprint )
  Horus E2-B: FRR ≤ 0.02% (Visible Light Facial Authentication)
  Horus E2-QR: FRR ≤ 0.02% ( Visible Light Facial Authentication)

• Biometric Algorithm

  Horus E2: ZKFace VX5622
  Horus E2-FP: ZKFace VX5622; ZKFinger VX10.0
  Horus E2-B: ZKFace VX5622
  Horus E2-QR: ZKFace VX5622

• Card Type

  ID Card@125 kHz & IC Card@13.56 MHz (Standard)

• QR Code

  Horus E2: /
  Horus E2-FP: /
  Horus E2-B: /
  Horus E2-QR: ZKBio Zexus Mobile App, PDF417 scanning in third-party development projects

• Communication

  TCP/IP*1; Wi-Fi (IEEE 802.11 ac/a/b/g/n) @ 2.4 GHz & 5G GHz; Bluetooth: BLE 4.1
  Wiegand (Input & Output)*1; RS485: ZKTeco RS485 *1; Aux Inputs *1; Electric Lock*1; Door Sensor*1; Exit Button*1; Alarm*1

• Mobile Communication

  Support 4G, Support GSM/WCDMA / TDSCDMA / LTE / TDD
  GSM4, W (B1 / 2 / 4 / 5 / 8) ; TD (34 / 39)
  PRX (1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 17 / 20 / 28AB / 34 / 38 / 39 /40 / 41)
  DRX (1 / 2 / 3 / 4 / 5 / 7 / 8 / 12 / 17 / 20 / 38 / 39 / 40 / 41)

• Standard Functions

  ADMS, Photo Capture, Event Photo Capture, Holidays, Anti-Passback, Schedule Bell, Record Query, Tamper Switch Alarm, Multiple Authentication Methods, AC Push and TA Push Protocol Switch, T9 Keyboard (Input)

• Access Control Interface

  RS485 ( RS485 Card Reader / Biometric Reader)

• Power Supply

  Horus E2: DC 12V 3A
  Horus E2-FP: DC 12V 3A
  Horus E2-B: DC 12V 3A Backup Battery
  Horus E2-QR: DC 12V 3A

• Backup Battery

  Horus E2: /
  Horus E2-FP: /
  Horus E2-B: 3,200mAh (Lithium Battery)
  Horus E2-QR: /

• Operating Temperature

  -10°C to 45°C

• Operating Humidity

  0% to 80% RH (Non-condensing)

• Dimensions

  Horus E2: 171.5mm * 82mm * 19.5mm (L*W*H)
  Horus E2-FP, Horus E2-B, Horus E2-QR: 216mm * 82mm * 19.5mm (L*W*H)

• Gross Weight

  Horus E2: 1.0 Kg
  Horus E2-FP, Horus E2-B, Horus E2-QR: 1.06 Kg

• Net Weight

  Horus E2: 0.39 Kg
  Horus E2-FP, Horus E2-B, Horus E2-QR: 0.46 Kg

• Supported Software

  Software: ZKBio Time / ZKBio CVAccess
  Mobile Application: ZKBio Zexus

• Installation

  Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

• Certifications

  ISO14001, ISO9001, CE, FCC, RoHS
