Description

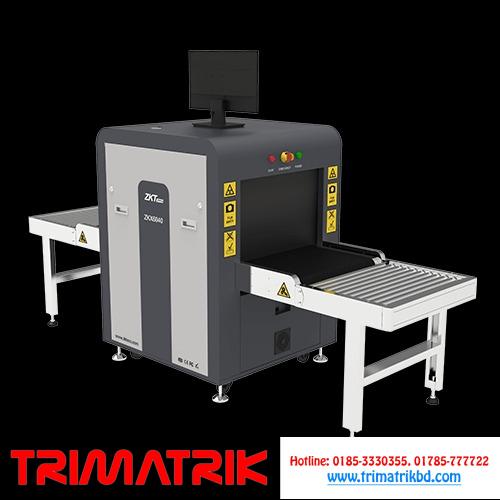

ZKTECOZKX6040

• Tunnel Dimensions (W*H)

  600 * 400 (mm)

• Conveyor Speed

  0.3m/sec

• Load on Conveyer

  180 kg (evenly distributed)

• Conveyor Height

  680 mm

• Space Definition

  Horizontal Φ1.0mm / Vertical Φ2.0mm

• Steel Penetration

  35 mm

• Wire Resolution

  38AWG

• Dual-energy Detector

  Yes

• Number of Colors in X-ray Image

  3

• Dimensions (L*W*H)

  1701 * 910 * 1305 (mm)

• Package Dimensions (L*W*H)

  2070*1150*1400 ( mm )

• Weight

  380 kg

• Package Weight

  480 kg

• Film Safety

  ASA / ISO1600 standard of film safety

• Single Inspection Dosage Rate

  ≤1.0μGy

• Supported Software

  ZKBio SIS

• Communication Interface

  RJ45 (TCP/IP)

• Radiation Leak Dosage

  0.1μ Gy/h (5cm from the surface)

• Operating Temperature

  -10°C to +45°C

• Storage Temperature

  -20°C to +60°C

• Humidity

  5-95%, non-condensing

• Power Supply

  230 VAC +/- 10% / 60 / 50 Hz (EU)
  110 VAC +/- 10% / 60 / 50 Hz (US)

• Power Consumption

  Max. 1.0 kVA

• Sound Pressure

  54 dB

• Processor

  Intel® Braswell SoC N3160 (QC-2.24GHz)

• Monitor

  21” LED color

• Memory

  Onboard 4 GB RAM

• Hard Drive

  2 TB

• USB Port

  4 ports

• Max. Storage

  Up to 200,000 scanned images

• Tube Current

  0.8 mA

• Anode Voltage

  150 kV rated

• Generator Cool

  Seal oil cooling / 100%

• Orientation

  Vertically upwards
