Description

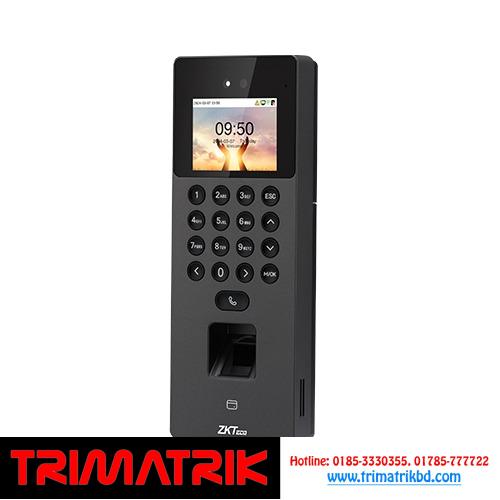

ZKTECOSenseFace 2A

• Model

  SenseFace 2A

• Display

  2.4″@ TFT Color LCD Screen (320*240)

• Camera

  WDR Binocular Camera @ 1MP

• Operation System

  Linux

• Hardware

  CPU: Dual Core@1GHz
  RAM: 512MB; ROM: 8GB
  Speaker: 8ohm @1W
  Microphone: *1 (Sensitivity: -32 dB / Omni-directional / Signal-to-Noise Ratio: -32
  dB/Impedance: 2.2kΩ)
  Supplement Light: Yes
  Physical Keypad: 17 Keys
  Fingerprint Sensor: ZK Optical Sensor

• Authentication Method

  Fingerprint / Face / Card / Password (Physical Keypad)

• Fingerprint Template Capacity

  3,000 (1:N) (Standard)

• Face Template Capacity

  1,500 (1:N) (Standard)

• Card Capacity

  3,000 (1:N) (Standard)

• User Capacity

  3,000 (1:N) (Standard)

• Transaction Capacity

  150,000 (1:N)

• Max. User Password Length

  8 Digits

• Biometric Verification Speed

  less than 0.5 sec (Fingerprint)
  less than 0.35 sec (Facial Authentication)

• Touchless Biometric Recognition Distance

  30cm to 200cm (Facial Authentication)

• False Acceptance Rate (FAR) %

  FAR ≤ 0.01% (Visible Light Facial Authentication)
  FAR ≤ 0.0001% (Fingerprint)

• False Rejection Rate (FRR) %

  FRR ≤ 0.02% (Visible Light Facial Authentication)
  FRR ≤ 0.01% (Fingerprint)

• Biometric Algorithm

  ZKFace V4.0
  ZKFingerprint V13.0 (Standard) /V10.0 (Optional)

• Card Type

  ID Card@125 kHz (Standard)
  IC Card@13.56 MHz (Optional)

• Communication

  TCP/IP*1
  Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
  USB: Type A (USB Drive Only )*1
  Electric Lock*1, Door Sensor*1, Exit Button*1

• Standard Functions

  ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)

• Optional Functions

  IC Card, Wi-Fi, Wireless Doorbell

• Power Supply

  DC 12V 1.5A

• Operating Temperature

  -5°C to 45°C

• Operating Humidity

  20% to 80% RH (Non-condensing)

• Dimensions

  205.20 mm*74.19 mm*33.30 mm (L*W*H)

• Net Weight

  0.258 Kg

• Supported Software

  Software: ZKBio CVAccess / ZKBioTime
  Mobile App: ZKBio Zlink
  Cloud Service: ZKBio Zlink

• Installation

  Wall-mount (Compatible with Asian Gang Box / Single Gang Box)

• Certifications

  ISO14001, ISO9001,CE, FCC, RoHS
