Description

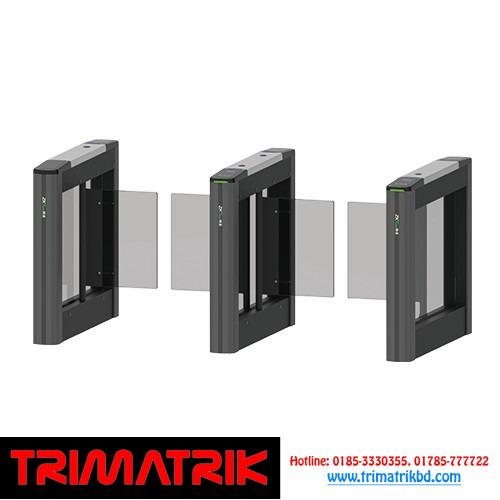

ZKTECOSaturn Plus Series

• Model Name

  Saturn-S1000 Plus
  Saturn-S1200 Plus

• Audio Indicator

  Internal speaker

• Visual Indicator

  Top LED indicator:
  Blue=Door closed/stand by
  Green=Door opening
  Red=Door closing/alarm

  Side LED indicator:
  Green=Lane available
  Red=Lane unavailable

• Display

  NA

• Lane Type

  Saturn-S1000 Plus: Single lane
  Saturn-S1200 Plus: Dual Swing (for additional lane)

• Lane Width

  600mm (Standard)
  Max 900mm (Optional)

• Barrier Movement Type

  Swing

• Motor

  DC brushless motor

• Movement Speed

  Average 1s per movement (Adjustable open/close timing)

• Movement Accuracy

  NA

• Clutch

  NA

• Lid Material

  Stainless steel & Polycarbonate

• Lid Options Authentication Methods

  Streamlined under mount options: QR Code / RFID
  Surface mount option: Facial Authentication

• Chassis Material

  Cold-rolled steel SPCC (GB700) (Chassis Body) / Aluminum Alloy (Gate Column)

• Chassis Colour

  Sliver(standard), Gray(optional), Brown(optional)

• Barrier Material

  Light gray transparent acrylic (555*300mm) (standard) / Light gray transparent acrylic (555*375mm) (optional)

• IR Sensors

  6 pairs

• Motherboard Function

  System configuration, access control

• Motherboard Communication

  Fire alarm port (relay)*1, RS485 port*1

• Controller

  Not equipped, allowing optional from C3 / InBio Series or customization

• Credential Options

  Under mount RFID reader (support model: Pro ID Series, KR Series)
  Under mount fingerprint reader: FR1200 / FR1500S

• Flow Rate

  Facial Authentication: 15 passengers per minute
  QR Code: 30 passengers per minute
  RFID: 35 passengers per minute

• Accessibility

  Adult, children (with care), Disability (with care)

• Power Supply

  110V / 220V ±10% AC @50Hz/60Hz

• Power Rating

  10VA(Standby)
  40VA(Operation)

• Fire Signal

  Input for voltage free contact

• Noise Level

  Less than 60dB

• MTTR

  Less than 60 minutes

• MCBF

  3 million

• Weight

  Saturn-S1000 Plus: 50kg
  Saturn-S1200 Plus: 30kg

• Dimension (L*W*H)

  1200 * 150 * 1020 mm

• Dimensions with Packing ( L*W*H )

  Saturn-S1000 Plus: Carton(standard): 1265*220*1070 mm(2 boxes); Wooden box(optional): 1300*480*1224mm(1 box)
  Saturn-S1200 Plus: Carton(standard): 1265*220*1070mm(1 box); Wooden box(optional): 1300*260*1224mm(1 box)

• Operating Temperature

  -30 °C to 70 °C

• Operating Humidity

  5% to 90% RH (Non-condensing)

• Certifications

  CE, FCC

• Ingress Protection Rating

  IPX4

• Supported Software

  ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller)

• Safety Features

  Voltage free contact input for fire alarm fail state
  automatic swing barrier open during power off

• Security Features

  Anti-tailgating, anti-pinch

• Product Delivery

  Pre-assembled

• Application Environment

  Indoor / outdoor (if sheltered)

• Site Preparation

  Flat & level finished floor
  (base plate in options for unfinished floor)

• Security Level

  Low

• Emergency Mode

  Support (swing barrier open automatically)

• Packing Material

  Carton (standard) / Wooden (optional)
