Description

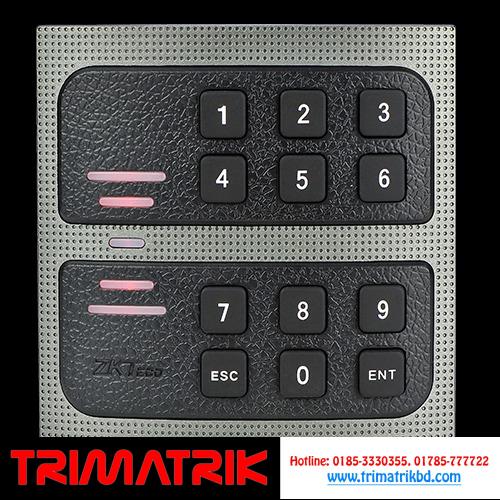

ZKTECORS485 Reader Series

• Read Range

  KRxxx-E: Up to 10CM
  KRxxx-M: Up to 5CM

• Reading Time

  ≤ 200ms

• Input Port

  External LED Control
  External Buzzer Control

• Supported Panel

  InBio160, InBio260, InBio460

• Power Supply

  DC 6-14V / Max.70mA

• Operating Humidity

  10% to 90% relative humidity non-condensing

• Material

  ABS + PC with texture

• Beeper

  Yes

• LED

  Red and Green LEDs

• Ingress Protection Rating

  KR100M-RS: IP65

• Output Format

  RS485

• Operating Temperature

  -20°C to 65°C (-10° to +70°C)
