Description

ZKTECOES-855P11T-S7-C-MI

• Model

  ES-855P11T-S7-C-MI

• Image Sensor

  1/2.7″CMOS

• Effective Pixels

  2592*1944

• Illumination (Minimum)

  Color: 0.0001Lux@F1.0 (AGC ON)

• Flash / DDR

  128Mb/1Gb

• White Lights No.

  2

• White Light Distance

  20m

• S/N Ratio

  >52dB

• Lens



• Lens Type

  Fixed

• Mount Type

  Board-in

• Focal Length

  2.8mm

• Aperture

  F1.0

• FOV

  115°

• Optical Zoom

  N/A

• Compression

  H.265/H.264

• Resolution

  5MP(2592*1944) / 4MP(2688*1520) /3MP(2304*1296) /1080P(1920*1080) /1.3MP(1280*960 )/ 720P(1280*720)

• Bitrate Control

  CBR/VBR

• Bit Rate

  H.265:4Mbps -16Mbps
  H.264:5Mbps – 20Mbps

• Multi-Streaming

  Main Stream: 5MP@25fps/4MP@25fps/3MP@25fps/1080P@25fps/960P@25fps/720P@25fps
  Sub Stream: D1@25fps/VGA@25fps/
  Third Stream: N/A

• Motion Detection

  Support

• Digital Zoom

  Support

• Audio Compression

  G7.11 u

• Privacy Mask

  5 areas

• WDR

  120db True WDR

• Day / Night

  Support

• White Balance

  Suppor

• Defog

  N/A

• Noise Reduction

  2D/3D DNR

• Mirror / Flip

  Support

• Corridor Mode

  Support

• HLC

  Support

• BLC

  Support

• ROI

  4 areas

• Anti-flicker

  Support

• IVA



• Intelligent Video

  Face Detection

• Facial Detection



• Face Templates

  N/A

• Face Detected Per Frame

  5

• Detected Face Size

  80×80-300×300 Pixels

• Face Quality Filtering

  Support

• Detection Area

  User-defined

• Capture Response

  ≤ 200ms

• Network



• Protocol

  TCP/IR,UDR,HTTR,HTTPS,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP,RTMP

• Interoperability

  ONVIF, SDK, API

• Max. Online Users

  3

• Web Browser

  IE/Firefox / Chrome / Safari

• Management Software (VMS)

  AntarVis 2.0
  ZKBioSecurity IVS
  ZKBioAccess IVS

• Operation System

  Windows

• Mobile APP

  AntarView Pro

• P2P Cloud Service

  Support

• Interface



• Ethernet

  1 RJ-45 port (10/100Mbps)

• Audio I/O

  Built-in Mic for audio in

• Alarm I/O

  N/A

• RS485

  N/A

• Reset Button

  Support

• Micro-SD Slot

  Support (max, 256GB)

• ANR

  Support

• USB

  N/A

• General



• Power Supply

  PoE, DC12V±10%

• Power Consumption

  <3.7W

• Working Temperature

  -30℃ to 60℃

• Working Humidity

  0% to 90%RH

• Ingress Protection

  IP67

• Dimensions

  Φ97.00 * 88.50

• Net Weight

  0.40kg

• Gross Weight

  0.52kg

• Ordering Information



• Camera

  5MP Camera

• Model

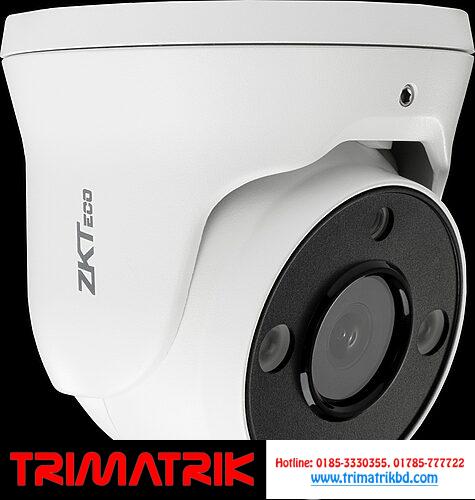

  ES-855P11T-S7-C-MI

• Description

  5MP Full Color Face Detection Turret IP Camera
