Description

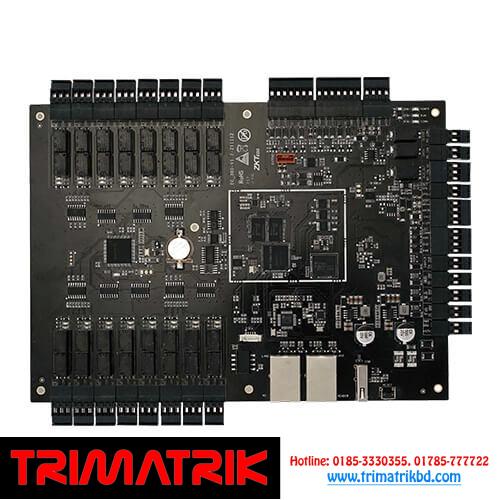

ZKTECOEC16 & DEX16

• Model

  EC16

• Fingerprint Capacity

  30,000

• Card Capacity

  100,000

• Transaction Capacity

  200,000

• Communication

  TCP/IP, USB Host, Wiegand, RS485*

• Floor Button Control Relay

  16 Dual Relay

• Number of Ports

  2 TCP / IP, 2 Wiegand (26 / 34 / 66 bits),
  1 RS485 (OSDP), 1 RS485 (expansion board),
  1 Open, 1 close, 1 AUX output,
  1 AUX in, 1 voice output(coming soon),
  1 LED Output(COMMRUN / PWR / GND),
  1 FIRE,1 Emergency, 1 Power in,
  1 USB 2.0 port

• Additional Info

  Dimension(L*W): 165*230mm
  Operating Temperature: -20°C to 55°C
  Storage Temperature: -25°C to 65°C
  Operating Humidity: 10% to 90% RH
  Data Protection: AES256, HTTPS, TLS1.2

• Special Functions

  Protocol: ZKTeco A & C Push
  Supported QR Code Reader : QR500 / 600 Series
  RS485 address Set by DIP switch
  Max Supported Expansion Board: 7pcs (DEX16) over RS485

• Certifications

  CE, FCC, ISO9001, ISO14001

• Compatibility

  ZKBio CVSecurity

• Power Supply

  DC 12V 3A

• Model

  DEX16

• Floor Button Control Relay

  16 Dual Relay

• Number of Ports

  1 RS485 IN,
  1 RS458 OUT

• Communication

  RS485(OSDP)

• Additional Info

  Communication to EC16 : RS485
  Operating Temperature :-20°C to 55°C
  Storage Temperature: -25°C to 65°C
  Operating Humidity:10% to 90% RH
  Dimension(L*W):165*132mm

• Certifications

  CE, FCC, ISO9001, ISO14001

• Power Supply

  DC 12V 1A
