Description

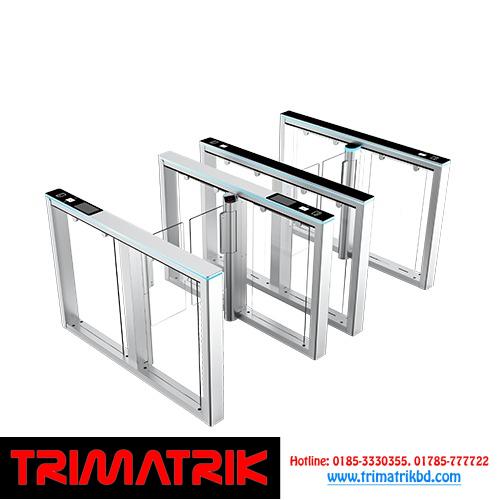

ZKTECOComet Series

• Model Name

  Comet-S1000
  Comet-S1200

• Audio Indicator

  Internal buzzer

• Visual Indicator

  LED strip along the lid (7 Colour RGB, Customizable)
  blue = stand by
  steady green = normal use
  steady red = door closing
  flashing red = alarm

• Display

  1 or 2*7″ IPS touch monitor (Under mount facial recognition version only)

• Lane Type

  Comet-S1000: Single lane
  Comet-S1200: Dual wings (with comet-1000)

• Lane Width

  660mm (Standrad)
  900mm (Optional)

• Barrier Movement Type

  Swing

• Motor

  DC brushless motor

• Movement Speed

  0.8s per movement(open / Close timing)

• Movement Accuracy

  ≤1.5 Degree per movement

• Clutch

  Mechanical clutch for anti-panic / anti-collision

• Lid Material

  Tempered glass (Black) (Standard)

• Lid Options Authentication Methods

  Streamlined under mount options: Fingerprint / RFID / QR Code / Fingerprint + RFID / Fingerprint+QR Code / Fingerprint+RFID+QR Code / Facial recognition with display
  Top mount option: mounting pole (Compatible with ProFace X / SpeedFace V5L/ Elite Pass)

• Chassis Material

  Cast aluminium alloy (T=3mm)

• Chassis Colour

  Silver (Standard), gold (Optional)

• Door Leaf Material (H*W)

  Clear acrylic (630*295mm (Standard))
  Clear tempered glass (630*295mm)

• IR Sensors

  8 Pairs (Standard) (High position)

• Motherboard Function

  System configuration, access mode configuration, anti-pinch configuration, anti-tailgate configuration etc.

• Motherboard Communication

  Fire alarm port(relay)*1, RS485 port*1

• Controller

  PGIC controller (Recommendation)
  Others depends on dimensions fitting in (Optional)

• Credential Options

  Under mount RFID reader: (support model: ProID series, Armatura EP10C & Armatura EP20 series)
  under mount QR code reader: QR500
  under mount fingerprint reader: FR1200 / FR1500
  under mount facial recognition terminal: G4 Pro
  Top mount facial recogntion terminal: ProFaceX / Elite Pass / SpeedFace V5L

• Flow Rate

  RFID: 30 passengers per minute
  QR Code: 30 passengers per minute
  Fingerprint: 20 passengers per minute
  Face: 15 passengers per minute

• Accessibility

  Under mount facial recognition version: adult, children, disability rest of the versions: adult, children (with care), disability (with care)

• Power Supply

  110V / 220V AC @ 50Hz to 60Hz

• Power Rating

  20 VA (Stand by)
  120 VA (Operation)

• Fire Signal

  Input for voltage free contact

• Noise Level

  Less than 60 dB

• MTTR

  Less than 60 minutes

• MCBF

  6 million

• Gross Weight

  Comet-S1000: 130kg
  Comet-S1200: 80kg

• Net Weight

  Comet-S1000: 100kg
  Comet-S1200: 65kg

• Dimension (L*W*H)

  1500*115*1000mm (Standard)

• Dimensions with Packing ( L*W*H )

  1600 * 160 * 1200mm

• Operating Temperature

  -28°C to 60°c

• Operating Humidity

  95% RH (non-condensing)

• Certifications

  CE, FCC

• Ingress Protection Rating

  N/A (Waterproof and dustproof)
  N/A (Barrier only) (Vandal ressistant)

• Supported Software

  ZKEasyGO / ZKBio Access / ZKBio CVSecurity (Depends on equipped access controller)

• Safety Features

  Safety force sensing; Lower safety sensors; Accurate presence sensing ; Emitter/ receiver infrared sensors technology; Logic voltage 24V DC; Voltage free contact input for fire alarm fail state; Auto opening on power off; Anti-panic push opening in operation; Wide walkway for wheelchair or easier access; Accompanied wheelchair or child passage management (under mount facial recognition version)

• Security Features

  Anti-intrusion, Anti-tailgating, Wrong way enter alarm, Automatically close door no one pass

• Product Delivery

  Pre-assembled

• Application Environment

  Indoor

• Site Preparation

  Flat & level finished floor (Base plate in options for unfinished floor)

• Security Level

  Middle

• Emergency Mode

  Support (door unlock automatically)

• Packing Material

  Wooden box
