Description

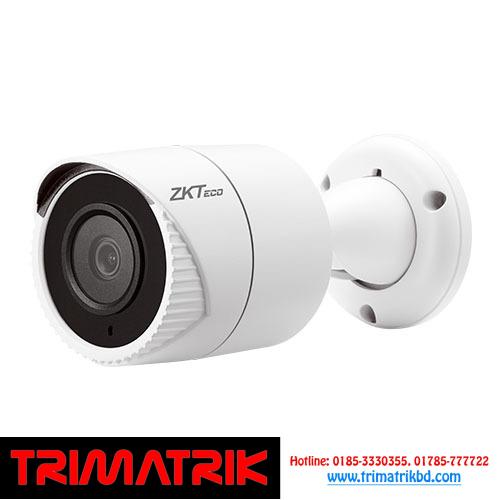

ZKTECOBS-854N23B-S7

• Model

  BS-854N23B-S7

• Image Sensor

  1/3”CMOS Sensor

• Effective Pixels

  2560*1440

• Min. Illumination

  Color: 0.01Lux@F1.6 (AGC ON)
  B/W: 0.001Lux@F1.6 (IR ON)

• Flash / DDR

  128MB / 512MB

• IR LED No.

  2

• IR Distance

  30m

• S/N Ratio

  >52dB

• Lens



• Lens Type

  Fixed

• Mount Type

  Board-in

• Focal Length

  6mm

• Aperture

  F1.6

• FOV

  56°

• Optical Zoom

  N/A

• Video



• Compression

  H.265, H.264

• Resolution

  4MP (2560 x 1440) / 3MP(2304 x 1296) / 1080P (1920 x 1080) /1.3MP (1280 x 960) / 720P (1280 x 720)

• Bitrate Control

  CBR / VBR

• Bitrate

  1792Kbps ~ 6Mbps

• Multi-Streaming

  Main Stream: 4MP@20fps / 3MP@25fps / 1080P@25fps / 960P@25fps / 720P@25fps
  Sub Stream: D1@25fps / VGA@25fps /CIF@25fps
  Third Stream: N/A

• Motion Detection

  Support

• Digital Zoom

  Support

• Audio Compression

  G.711u

• Privacy Mask

  4 areas

• WDR

  DWDR

• Day / Night

  Support

• White Balance

  Support

• Defog

  N/A

• Noise Reduction

  2D/3D DNR

• Mirror / Flip

  Support

• Corridor Mode

  Support

• HLC

  Support

• BLC

  Support

• ROI

  4 areas

• Anti-flicker

  N/A

• IVA



• Intelligent Video

  N/A

• Facial Detection



• Face Templates

  N/A

• Face Detected Per Frame

  N/A

• Detected Face Size

  N/A

• Face Quality Filtering

  N/A

• Detection Area

  N/A

• Capture Response

  N/A

• Network



• Protocol

  TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IPv4, SSL/TLS

• Interoperability

  ONVIF Profile S, SDK, API

• Max. Online Users

  3

• Web Browser

  IE / Firefox / Chrome / Safari

• Management Software (VMS)

  AntarVis 2.0
  ZKBioSecurity IVS
  ZKBioAccess IVS

• Operation System

  Windows

• Mobile APP

  AntarView Pro

• P2P Cloud Service

  Support

• Interface



• Ethernet

  1*RJ-45 port (10/100Mbps)

• Audio I/O

  N/A

• Alarm I/O

  N/A

• RS485

  N/A

• Reset Button

  N/A

• Micro-SD Slot

  N/A

• ANR

  N/A

• USB

  N/A

• General



• Power Supply

  PoE (IEEE802.3af ), DC 12V±10%

• Power Consumption

  <3W

• Dimensions

  145 * 65 * 65 (mm)

• Ingress Protection Rating

  IP67

• Operating Temperature

  -30°C ~ 60°C

• Operating Humidity

  10% ~ 90%

• Net Weight

  0.36kg

• Gross Weight

  0.46kg
