Description

ZKTECOBS-852O12T-S5-C-MI

• Model

  BS-852O12T-S5-C-MI

• Image Sensor

  1/2.9″ CMOS

• Effective Pixels

  1920*1080

• Illumination (Minimum)

  Color: 0.0001Lux@F1.0 (AGC ON)

• Flash / DDR

  16Mb/512Mb

• IR LED No.

  4

• IR Distance

  20m

• S/N Ratio

  ≥52dB

• Lens



• Lens Type

  Fixed

• Mount Type

  Board-in

• Focal Length

  3.6mm

• Aperture

  F1.0

• FOV

  85°

• Optical Zoom

  N/A

• Compression

  H.265/H.264

• Resolution

  1080P (1920×1080)
  1.3M (1280×960)
  720P (1280×720)

• Bitrate Control

  CBR/VBR

• Bitrate

  H.265:128Kbps-6Mbps
  H.264:128Kbps-6Mbps

• Multi-Streaming

  Main Stream：1080P@25fps/960P@25fps/720P@25fps
  Sub Stream：D1@25fps/VGA@25fps/
  Third Stream: N/A

• WDR

  DWDR

• Day / Night

  Support

• White Balance

  Support

• Defog

  N/A

• Noise Reduction

  2D/3D DNR

• Mirror / Flip

  Support

• Corridor Mode

  Support

• Motion Detection

  Support

• Digital Zoom

  Support

• Audio Compression

  G7.11u

• Privacy Mask

  4 areas

• HLC

  Support

• BLC

  Support

• ROI

  4 areas

• Anti-flicker

  N/A

• IVA



• Intelligent Video

  N/A

• Facial Detection



• Face Templates

  N/A

• Face Detected Per Frame

  N/A

• Detected Face Size

  N/A

• Face Quality Filtering

  N/A

• Detection Area

  N/A

• Capture Response

  N/A

• Network



• Protocol

  Protocol TCP/IP, UDR, HTTR, DHCR, RTSR, DDNS, NTP

• Interoperability

  ONVIR, SDK, API

• Max. Online Users

  3

• Web Browser

  IE / Firefox / Chrome / Safari

• Management Software (VMS)

  AntarVis 2.0
  ZKBioSecurity IVS
  ZKBioAccess IVS

• Operation System

  Windows

• Mobile APP

  AntarView Pro

• P2P Cloud Service

  Support

• Interface



• Ethernet

  1 RJ-45 port (10/100Mbps)

• Audio I/O

  Built-in Mic for audio in

• Alarm I/O

  N/A

• RS485

  N/A

• Reset Button

  Support

• Micro-SD Slot

  Support (max. 256GB)

• ANR

  Support

• USB

  N/A

• General



• Power Supply

  PoE, DC12V±10%

• Power Consumption

  <3.7W

• Ingress Protection

  IP67

• Dimensions (L*W*H)

  180.80 * 75.30 * 66.20 (mm)

• Working Temperature

  -30℃ to 60℃

• Working Humidity

  0% to 90%RH

• Net Weight

  0.4kg

• Gross Weight

  0.52kg

• Order Information



• Camera

  2MP Camera

• Model

  BS-852O12T-S5-C-MI

• Description

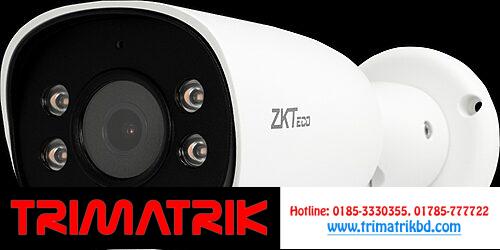

  2MP Full Color Bullet IP Camera
