Description

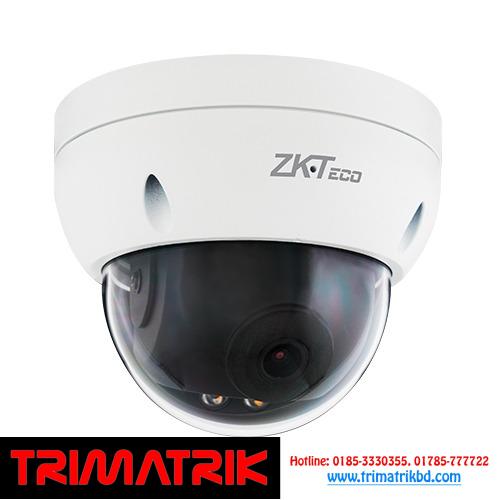

ZKTECO DS-852E32B-S3-MI-S-HL

• Model

  DS-852E32B-S3-MI-S-HL

• Image Sensor

  1/2.8” 2 MP CMOS Sensor

• Max. Resolution

  1920 (H) × 1080 (V)

• ROM

  128 MB

• RAM

  256 MB

• Scanning System

  Progressive Scan

• Electronic Shutter Speed

  1/5 s to 1/100,000 s

• Min. Illumination

  0.001 Lux @ F1.3 (AGC on, Color)
  0 lux (IR on, B & W)

• S/N Ratio

  > 52 dB

• IR Range

  40 m

• White Light Range

  30 m

• Illuminator On/Off Control

  Auto / Manual

• Illuminator Number

  2 × IR / White Light integrated LED

• Smart IR

  Support

• Angle Adjustment for Installation

  Pan: 0° to 360°
  Tilt: 0° to 90°
  Rotation: 0° to 360°

• TV System

  PAL / NTSC

• Image Settings

  Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser

• Software Reset Default

  Support

• General Function

  Heartbeat, Mirror, Privacy mask, Log, Password reset

• Lens



• Lens Type

  Fixed Lens

• Lens Mount

  M22

• Mount Type

  Board-in

• Focal Length

  3.6 mm

• Max. Aperture

  F1.3

• Optical Zoom

  N/A

• Field of View

  FOV: 85°
  Horizontal: 88°
  Vertical: 45°
  Diagonal: 105°

• Iris Control Type

  Fixed

• Close Focus Distance

  1.5 m

• DORI Distance

  Lens: 3.6mm
  Detect: 50.0m
  Observe: 19.6m
  Recognize: 10.0m
  Identify: 4.3m

• Video



• Video Compression

  H.265 / H.264

• Resolution

  2 MP (1920 × 1080) / 1.3 MP (1280 × 960) / 720P (1280 × 720)

• Max Video Frame Rate

  Main stream: 50 Hz (PAL): 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz (NTSC): 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  Sub stream: 50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360); 60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360)
  Third stream: 50 Hz (PAL): 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz (NTSC): 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Video Stream Capability

  Triple streams

• Bit Rate Control

  CBR / VBR

• Video Bit Rate

  H.264: 896 Kbps to 6 Mbps
  H.265: 1024 Kbps to 6 Mbps

• Day / Night

  Auto (ICR) / Color / B&W

• BLC

  Support

• HLC

  Support

• WDR

  120 dB True WDR

• Scene Self-adaptation

  Support

• White Balance

  Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp

• Gain Control

  Low, Mid low, Mid, Mid high, High

• Noise Reduction

  2D / 3D NR

• Motion Detection

  Smart / Ordinary (4 areas)

• Region of Interest (ROI)

  Support (4 areas, Level 1 to 6)

• Defog

  N/A

• Mirror

  Support

• Image Rotation

  0° / 90° / 180° / 270° / Horizontal / Vertical

• Privacy Mask

  4 areas

• Corridor Mode

  Support

• Digital Zoom

  Support

• Anti-flicker

  N/A

• Audio



• Built-in Microphone

  Support

• Speaker

  N/A

• Audio Compression

  G.711 ulaw

• Environment Noise Filtering

  Support

• Audio Sampling Rate

  8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

• Audio Bit Rate

  64 Kbps (G.711 ulaw)

• Intelligent Video Analytics



• IVA (Perimeter Protection)

  Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification)

• Intelligent Search

  Support fast retrieval by human and vehicle targets classification

• Intelligent Video

  Support fast retrieval by human and vehicle targets classification, playback and backup

• Face Detection



• Face Templates

  N/A

• Face Quality Filtering

  N/A

• Face Detected Per Frame

  N/A

• Detection Area

  N/A

• Capture Response

  N/A

• Detected Face Size

  N/A

• Alarm



• Basic Alarm Event

  Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm

• Smart Alarm Event

  Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification)

• Alarm Linkage Actions

  Notify surveillance center, trigger recording, trigger capture, send email

• Network



• Simultaneous Live View

  Up to 15 channels

• Network

  1 RJ45 10 M/100 M self-adaptive Ethernet port

• SDK and API

  Support SDK, API and ONVIF

• Cyber Security

  Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP/HTTPS; TLS; IP address filter; Security Audit Log

• Protocol

  TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket

• Interoperability

  ONVIF Profile S / T / G

• User / Host

  Up to 256 users can be added. 3 user levels: admin, operator and guest

• Network Storage

  FTP

• Web Browser

  IE / Edge / Firefox / Chrome / Safari

• Management Software

  AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess

• Mobile Application

  AntarView Pro+ (iOS & Android)

• On-Board Storage

  N/A

• Operation System

  Windows

• P2P Cloud Service

  Support

• Port



• Audio Input

  N/A

• Audio Output

  N/A

• Alarm Input

  N/A

• Alarm Output

  N/A

• Interface



• Reset Button

  N/A

• ANR

  N/A

• USB

  N/A

• RS485

  N/A

• General



• Power



• Power Supply

  PoE (IEEE802.3af, Class 3), DC 12 V ± 10% reverse polarity protection

• Power Consumption

  Basic ≤3 W (12 VDC); 4.5 W (PoE)

• Power Interface

  Ø 5.5 mm coaxial power plug

• Structure



• Casing Material

  Aluminium Alloy

• Dimensions

  Φ117 * 94.2 (mm)

• Net Weight

  0.54 KG

• Gross Weight

  0.625 KG

• Environment



• Operating Conditions

  –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing)

• Storage Conditions

  –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing)

• Ingress Protection Rating

  IP67 (water and dust proof); IK10 (vandal resistance)

• Certifications



• Certificates

  ISO9001, ISO14001, CE, FCC
