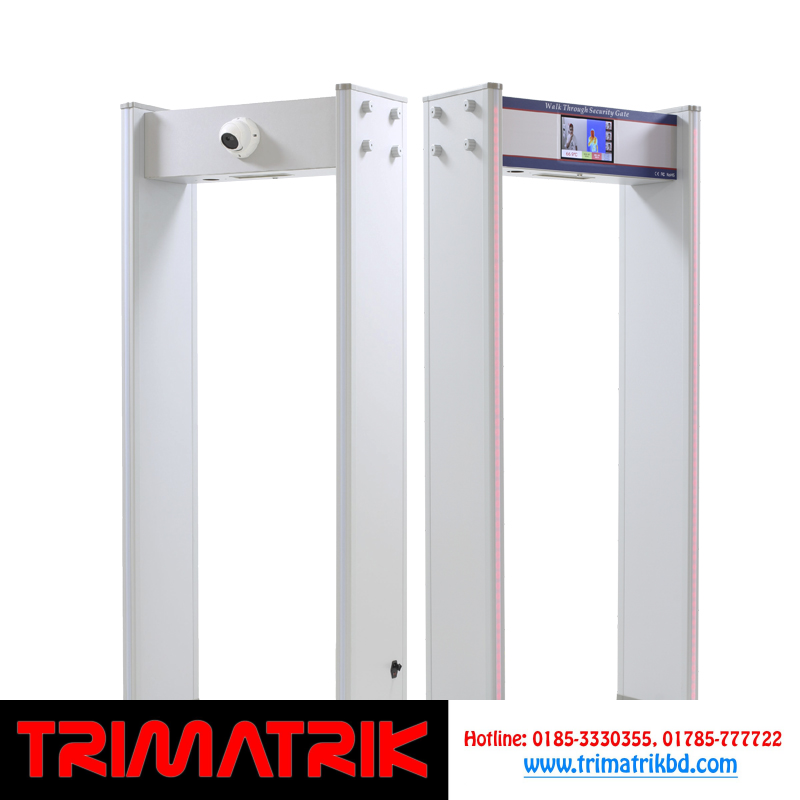

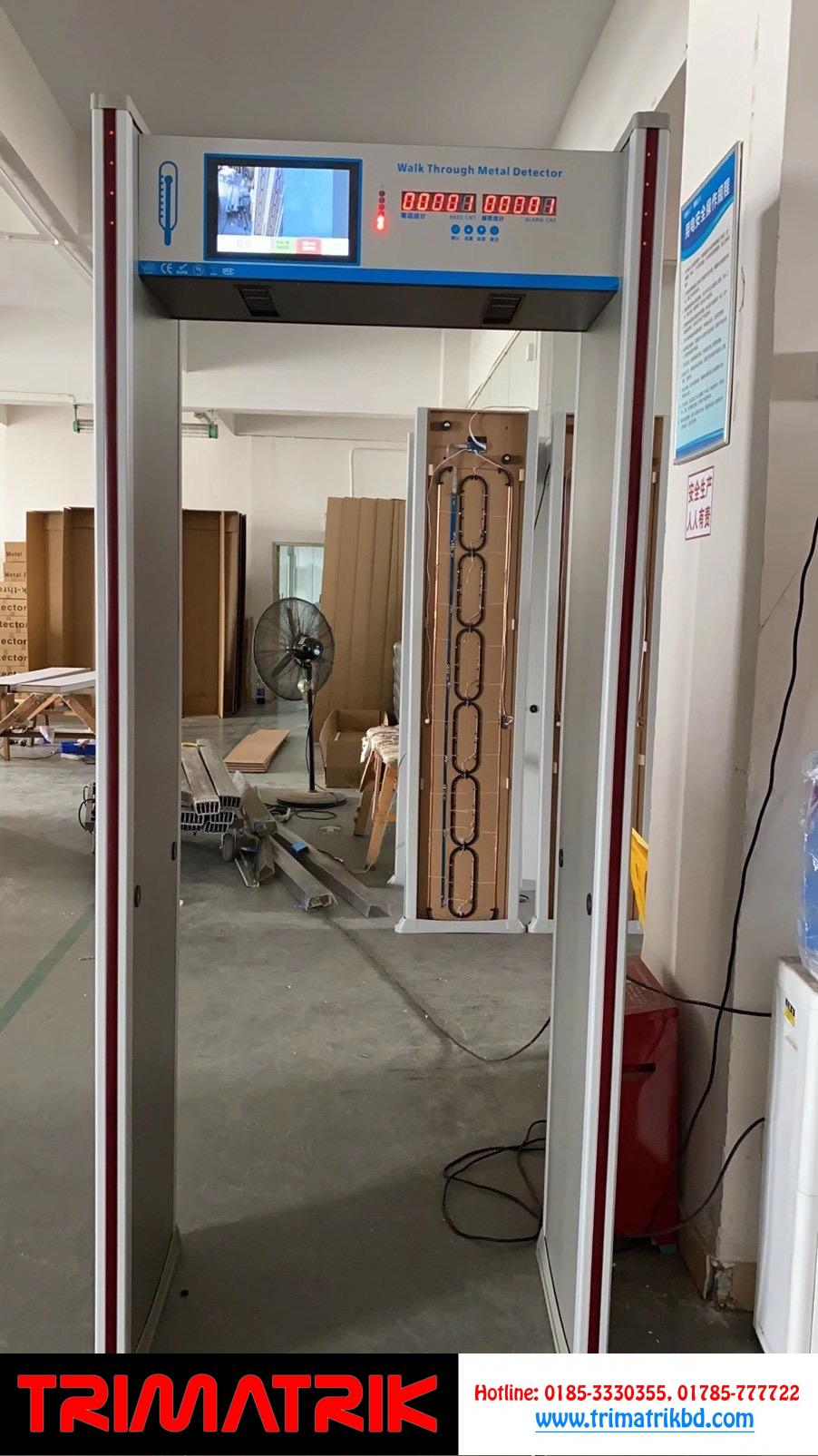

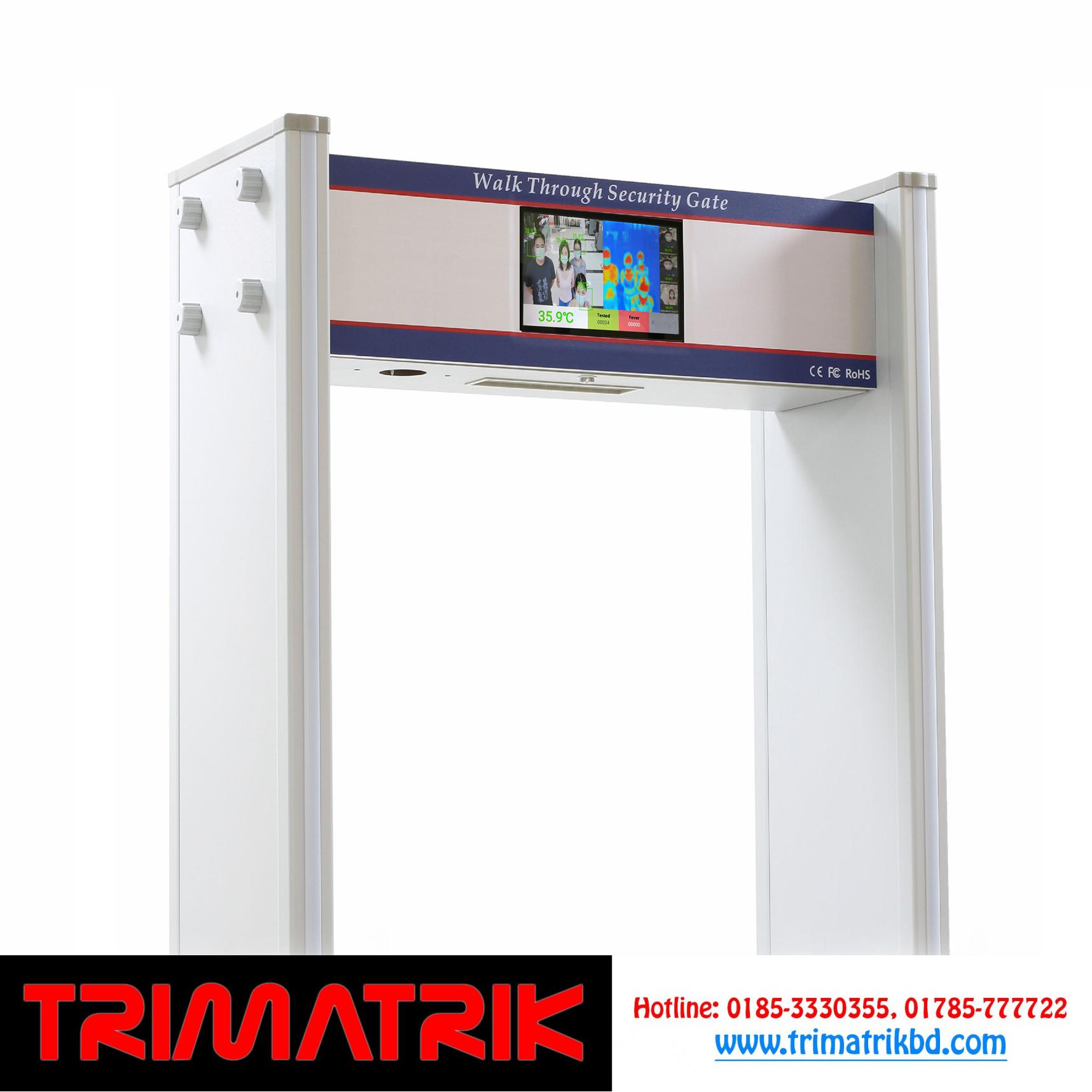

Thermal imaging temperature measuring door in Bangladesh.

1: no sensing temperature measurement: pass that is temperature measurement, non-contact remote passive imaging technology, real-time detection of multi-target temperature, temperature measurement accuracy ±0.5℃ (no black body), test distance: 0.5-2 meters;

2: Human body temperature screening: through the security temperature alarm settings, connect the security door sound and light alarm;

3: High-performance touch-controlled integrated machine, which can display real-time passing temperature, abnormal alarm temperature, passing number and alarm number

And so on; The voice temperature is normal, but abnormal.

4：Modular design is convenient for transportation, installation, maintenance, etc.

• Detector resolution 160*120

• Unheated F3.85mm\F1.2 lens

• Spectral range 8μm to 14 μm

• Unheated F3.85mm\F1.2 lens

• Sensitivity≤60mK (F/ 1,300 K, 50Hz)

• Frame frequency 15Hz

• Temperature measurement range of 20℃~ 50℃

• Temperature measurement accuracy±0.5℃ (algorithm calibration, no black body)

• Operating temperature 10℃~ 45℃

• Field Angle (calculated value) 40°×30

• Operating Voltage：AC220V 50/60Hz

• power：≤35W

• Signal frequency：6-9KHz

• Product Size:：2200mm*750mm*500mm

• Channel dimensions：2000mm*700mm*500mm
