Description

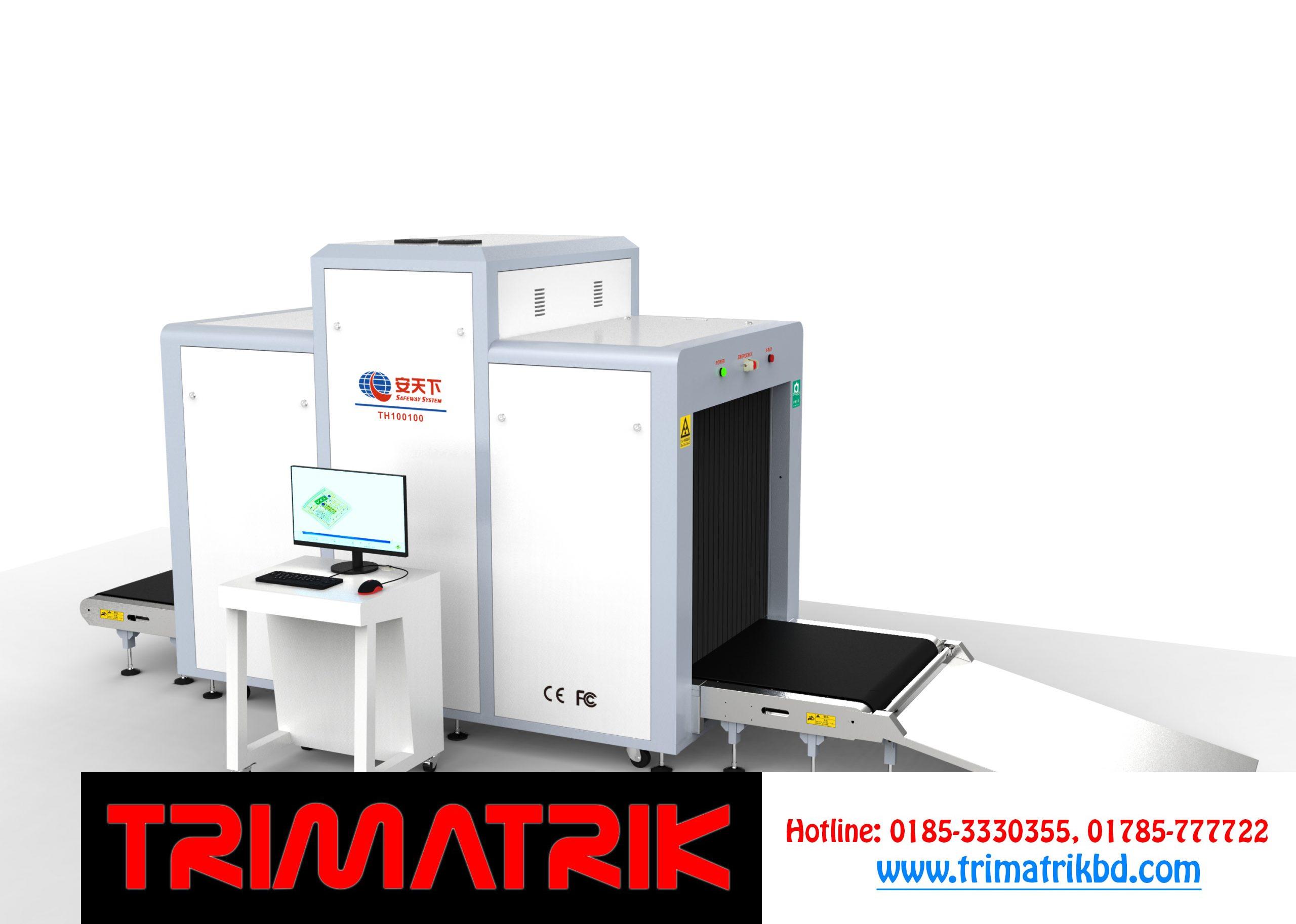

Safeway System TH100100 x-ray baggage scanner
Safeway System TH100100 x-ray baggage scanner is the most cost-effective model right for big size luggages security check in hotels, train stations, logistic companies, etc.
| Tunnel size(mm) | 1000(L)*1000(W) |
| Conveyor Speed(m/s) | 0.22 |
| Conveyor height(mm) | 341 |
| Conveyor Max Load(kgs) | 200 |
| X ray dose per each inspection | ≤3.5 μGy |
| X ray leakage | <1μGy/h at any point 5 centimeters outside the external surface |
| Penetration | 34 mm steel |
| Wire Resolution | dia 0.127mm copper wire (AWG36) |
| Penetration Resolution | dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
| Spatial resolution: | Horizontal:dia 1.3mm, Vertical: dia 1.3mm |
| Power Consumption | max. 1KW |
