Description

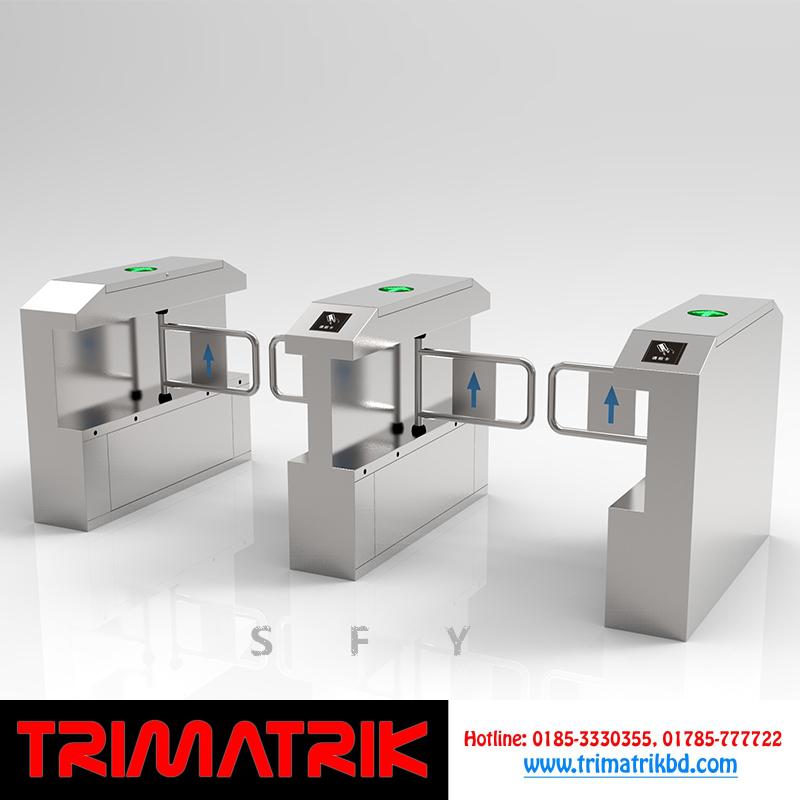

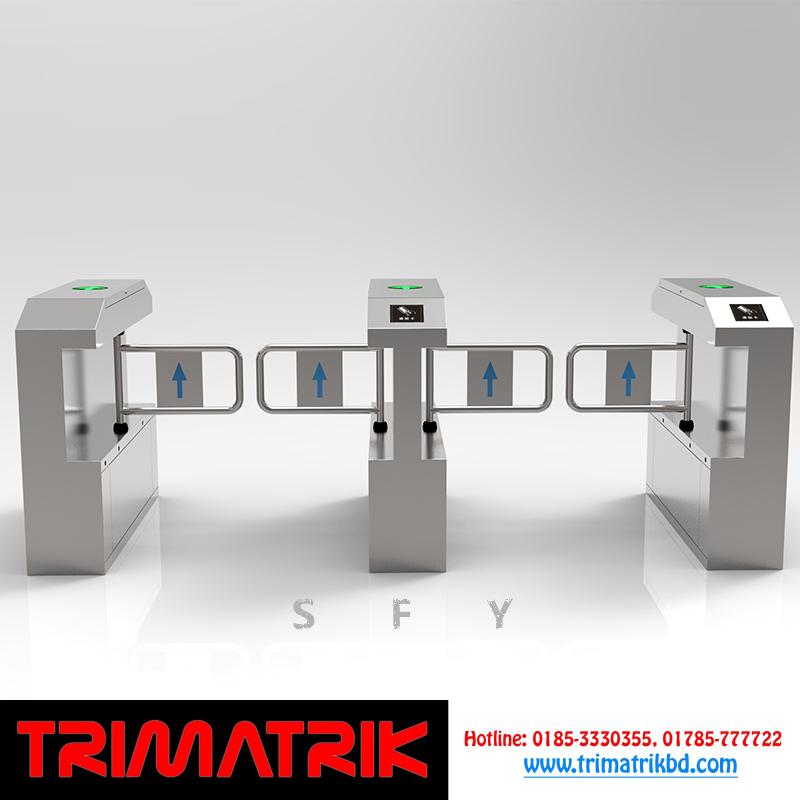

Swing gate Garage door and Road Barriers in Bangladesh.

Features:

• With fault self-checking and alarm prompt function, it is convenient for users to maintain and use;
• The operating status of the device can be set through the built-in small button on the main control board;
• Intelligent anti-pinch, anti-collision
• Anti-illegal impact: the swing arm is automatically locked when the gate opening signal is not received
• Adjustable swing arm synchronously (for double pendulum situation)
• With automatic reset function, after opening the gate, the system will automatically cancel the user’s permission to pass this time when the pass is not passed within the specified time;
• Adjustable normally open or normally closed to meet the requirements of
• different venues
• It can be connected to a variety of card reading devices, and receive relay switch signals to work;
• Passing mode: one-way or two-way control of personnel entry and exit
• Remote control and management through direct management computer;
• Delay automatic reset function: automatic reset 5 seconds after opening;
• The swing arm automatically swings open when the power is off, and closes automatically when the power is which meets the fire protection requirements.
• Sound (light) alarm function: including illegal intrusion alarm, (reverse intrusion to close the gate)
• Counting function (optional)
• Voice output, humanized prompts for correct passage (optional)

Technical Parameters：

• Shell material: SUS304 stainless steel
• Production process: full CNC laser cutting machine production
• Swing arm transmission angle: 180 degrees
• Working voltage: AC220 ±10% V/50 ±10% HZ
• Motor: brushed DC motor (24V)
• Input interface: dry contact signal or 12V level signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
• Communication interface: RS485 standard, distance ≤1200 meters
• LED indicator: 2 and Card reading window: 2
• Passing speed: 40 people/minute (normally open), 25-30 people/minute (normally closed)
• Gate opening and closing time: 1-2 seconds
• The time required for passage into the state after power: 3 seconds
• Automatic reset time after failure: 10 seconds
• Temperature: -10℃— 50℃ Relative humidity: ≤90%, non-condensing

Scope of application：

◎Quarters, factories, railway stations, docks, tourist attractions, import and export channel management

◎Ticket inspection channel management for exhibitions, swimming pools, etc.

◎Import and export attendance, access control, consumption management of enterprises and institutions

◎Special control channel
