Description

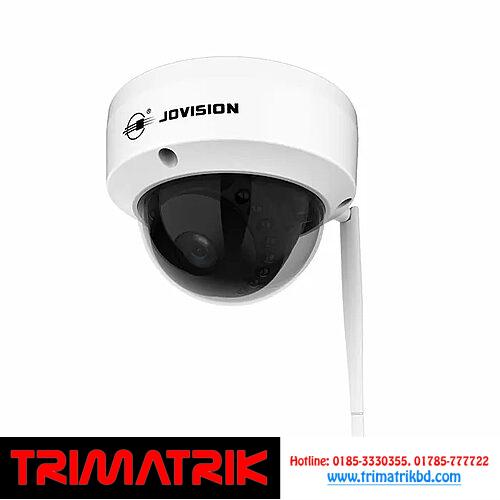

JOVISION JVS-N3622-WF 2MP Wi-Fi Vandalproof Dome Camera
| Model | JVS-N3622-WF |
| Video | |
| Image Sensor | 1/ 2.7” CMOS Sensor |
| Max Resolution | 1920 x 1080 |
| Effective Pixels | 2.0MP |
| Compression Standard | H.264 |
| Framerate | 20fps |
| SNR (dB) | 54db |
| Bitrate | Main: 40~8192Kbps |
| Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 4mm |
| Viewing Angle | H 79.6°, V 47.7°, D: 97.8° |
| IR-LEDs | 15x IR LEDs |
| IR-Distance | 10 Meters |
| Function | |
| Privacy Masking | Supports 4 Zone masking |
| Exposure Mode | Auto |
| Automatic Gain Control | Auto |
| White Balance | Auto |
| Image Enhancement | AGC/ AWB/ AEC/ 3D DNR |
| Motion Detection | Support |
| Two-Way Talk | Support |
| Remote Control | System Management, Audio/Video Management, Image Management, Storage Management, Alarm Management, Network Management. |
| Light & Sound Alarm | Support |
| Triggered Events To | Client, Email, Phone |
| Interface | |
| Ethernet | Support |
| SD Card | Support Max. 128GB |
| Reset Switch | Support |
| Network | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Wi-Fi | Wi-Fi (IEEE802.11b/g/n), 2.4Ghz |
| Stream | Dual stream |
| Protocols | TCP/IP, ICMP, UDP, SMTP, DHCP, DNS, PPPoE |
| Network Transmission | CloudSEE P2P Transmission Protocol |
| General | |
| Power Supply | DC12V/2A |
| Consumption | Day ≤3W Night ≤6W |
| Working Temperature | -20°C~50°C |
| Humidity | 10%~90% Rh |
| Material | Aluminum & Plastic |
| Installation | Wall, Ceiling Mounting |
| Dimensions | 109.74×81.8(mm) |
| Weights | 370g |
