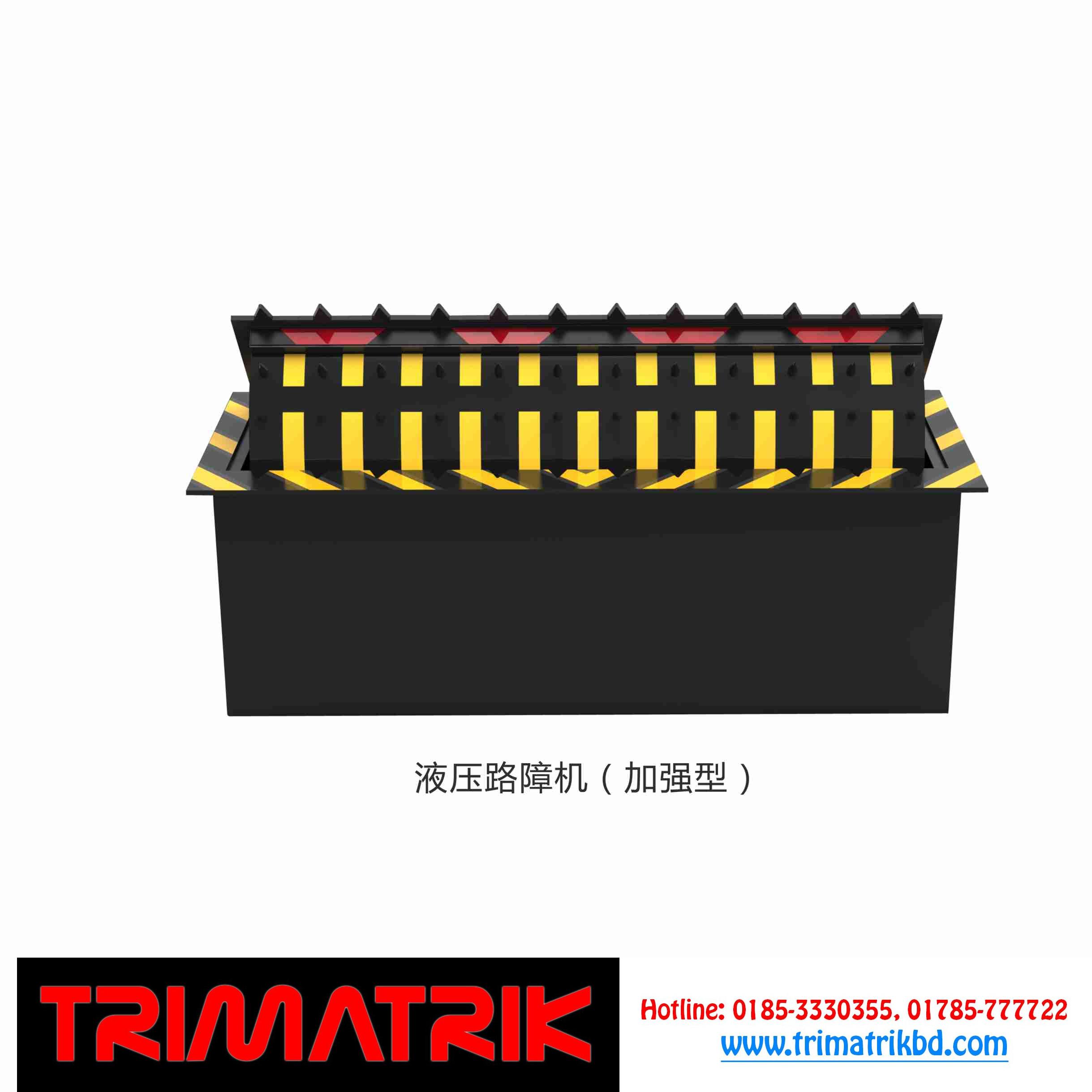

Hydraulic Buffer Barrier Machine

It mainly prevents unauthorized vehicles from forcibly entering. It has high practicability, reliability, and safety. It has a variety of configuration options and can be customized according to different site and customer needs, which can meet the functional requirements of various customers.

Category:

Description

Hydraulic Buffer Barrier Machine in Bangladesh.

  • Features:
  • the overall structure is divided into base, flipping body, hydraulic power system and electrical control system
  • with a new design, durable, carrying a large load, compact structure
  • The material is thick, which greatly improves the pressure resistance and anti-collision performance
  • The movement speed is stable, the noise is low, and it can adapt to various working conditions
  • split hydraulic design for ground maintenance operation
  • The single-chip microcomputer system control box is adopted, which is stable, reliable and easy to integrate
  • Equipped with emergency anti-terrorism, fire-fighting linkage functions, with vehicle detection and protection functions such as license plate recognition, infrared detection, radar, and ground sensing, which can realize unmanned intelligent management
  • In the state of power failure, the roadblock supports manual lifting
  • the panel are integrally formed, without the welding process, beautiful, strong, crash
  • The surface is treated with high-grade anti-rust paint, and engineering-grade reflective stickers are used at the same time, which plays a beautiful and warning role
  • Optional LED warning light, the night warning effect is more obvious and more beautiful
Hydraulic Buffer Barrier Machine in Bangladesh.
Hydraulic Buffer Barrier Machine in Bangladesh.

Technical Parameters:

Product styleHydraulic Buffer Barrier Machine
System controlElectric + hydraulic
Size specification6000MM*1000MM*780MM
Intercept width800-5800MM
Rise height500-600MM
Panel thickness16MM/20MM/25MM
Panel materialA3 steel
Tippy SpecificationsStainless steel,30MM*60MM
CraftAnti-rust paint process
waterproof levelIP68
Anti-collision levelK12
Through pressurePassable 20-ton/50-ton/100-ton container truck
Ascent speed3-5S
Descent speed1.5-3S
Supply voltage220V/380V(Control voltage 24V)
power3.7KW
Tubing specifications1/2 high pressure oil pipe, double-layer steel wire mesh structure
Controller specifications500MM*400mm*200mm
Controller installationIndoor, wall-hanging, to be waterproof
Linkage functionCan be linked to barrier system, traffic lights, AB gate, alarm system, etc.
Working temperature-35℃-75℃
Working environment-35℃-65℃

## Hydraulic Buffer Barrier Machine in Bangladesh.
