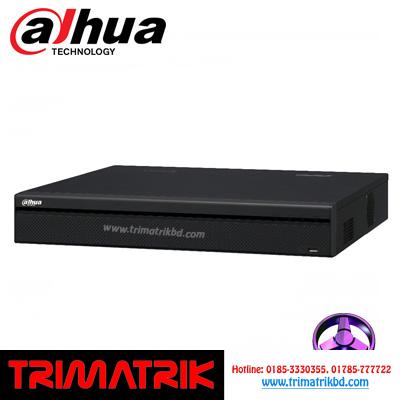

Dahua XVR5116HS-X Bangladesh | 16 Channel Penta-brid 1080P DVR
| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded LINUX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video and Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Analog Camera Input | 16 Channel, BNC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HDCVI Camera | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AHD Camera | 5MP, 4MP, 1080P@25/30, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TVI Camera | 5MP, 4MP, 1080P@25/30, 720P@25/30fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CVBS Camera | PAL/NTSC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IP Camera Input | 8+4/16+8 Channel, each channel up to 6MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio In/Out | 1/1, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Two-way Talk | Reuse audio in/out, RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Recording | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compression | H.265+/H.265/H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Rate | Main stream:5M-N(1~10fps), 4M-N/1080P(1~15fps), 1080N/720P/960H/D1/CIF (1~25/30fps) Sub stream: D1/CIF(1~15fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Bit Rate | 32Kbps ~ 6144Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Compression | AAC(only for the 1st channel), G.711A, G.711U, PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Sample Rate | 8KHz, 16 bit Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Bit Rate | 64Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 1 HDMI ,1 VGA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resolution | HDMI: 8CH: 1920×1080, 1280×1024, 1280×720 16CH: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multi-screen Display | When IP extension mode not enabled: 8CH: 1/4/8/9 16CH: 1/4/8/9/16 When IP extension mode enabled: 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 8CH: 1 RJ-45 Port (100M) 16CH: 1 RJ-45 Port (1000M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. User Access | 128 users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Smart Phone | iPhone, iPad, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interoperability | ONVIF 16.12, CGI Conformant | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Detection and Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm input | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Relay Output | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback and Backup | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback | 8CH: 1/4/9 16CH: 1/4/9/16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Backup Mode | USB Device/Network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Internal HDD | 1 SATA Port, up to 10TB capacity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| eSATA | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Auxiliary Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USB | 8CH:2 USB 2.0 16CH:1 USB 2.0 , 1 USB 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS232 | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS485 | 1 Port, for PTZ Control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | DC12V/2A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption (without HDD) | 8CH: <10W 16CH: <15W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | Mini 1U, 325mm×255mm×55mm (12.8″ x 10″ x 2.2″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Device with PFH101 Rack Mount Tray | 483mmx281mmx56mm (19.0″x11.1″x2.2″) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight (without HDD) | 8CH: 1.2kg (2.6 lb) 16CH: 1.3kg (2.9 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 8CH: 1.9kg (4.2lb) 16CH: 2kg (4.4 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Desktop installation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Support | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Third-party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | FCC: Part 15 Subpart B | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| UL: UL 60950-1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

Dahua DHI-XVR5116HS-X Bangladesh
Dahua DHI-XVR5116HS-X Bangladesh
With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO).
- H.265+/H.265 dual-stream video compression
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 24 channels IP camera inputs, each channel up to 6MP; Max 96Mbps Incoming Bandwidth
- Smart Search and Intelligent Video System
What is the DAHUA XVR5116HS-X Price in BD?
TRIMATRIK MULTIMEDIA offers you DAHUA XVR5116HS-X with the best price in Bangladesh which, is your budget-friendly. We also offers you Service & installation with this Dahua XVR5116HS-X XVR. DAHUA XVR5116HS-X Price is 10,500 Taka. Order Online for nationwide cash on delivery or visit our Corporate Office. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of Security & Automation Products.
System Overview
With the surveillance operators pursuing to HD/UHD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP/4K. The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO).
Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.
HDCVI/AHD/TVI/CVBS Auto-detect
The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
High Definition Camera Input
The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.
Smart Fan Design
The smart fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience.
Intelligent Video System (IVS)
With built-in intelligent video analytics, the XVR has the ability to detect and analyze moving objects for improved video surveillance. The XVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a predetermined line has been crossed.
Face Detection
It is a typical technology being used in a variety of applications for searching or identification of individuals.
Smart Search
This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.

DAHUA XVR5116HS-X Price in BD, Dahua XVR5116HS-X Bangladesh
Dahua XVR5116HS-X Price in Bangladesh
| Price: | ৳ 10,500 |
| Brand: | Dahua |
| Model: | XVR5116HS-X |
| Item: | 16CH XVR / DVR |
| Contact No: | 01789-636363, 0185-3330344 |
| Status: | In Stock |
| Warranty: | One Year |
