Ahuja UHC SERIES

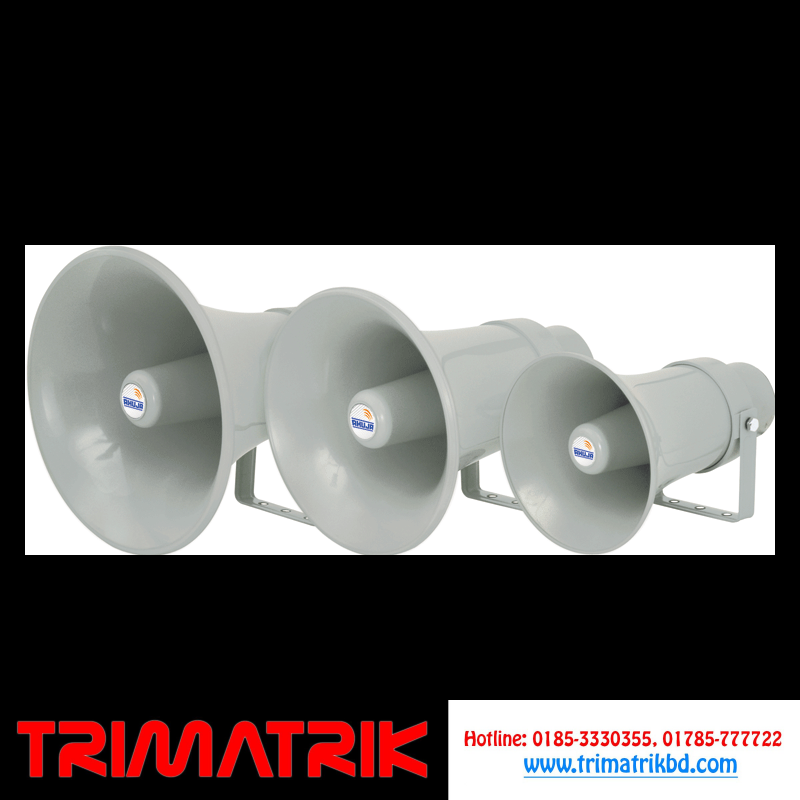

Ahuja UHC SERIES 100V PA Horn Speakers

  • Ahuja high quality, weather proof horn speakers are compact, light weight and rugged. They are moulded in tough UV protected ABS plastic for longer lasting finish.
  • The specifications and construction of these are similar to the low impedance horn speakers. These models have been provided with 100V line matching transformers with multiple taps/impedance easily selectable by changing the position of the rotary switch at the rear of the sealed assembly.
  • These 100V models are ideal for installations where long speaker cables are used, to avoid power loss in the cables.
  • They meet European Union regulations and comply with low voltage directive standard EN 60065. Degree of protection
  • IP 66 is provided against foreign particles such as dust and jets of water, thus making them ideal for outdoor use.
Categories: ,

Description

Ahuja UHC SERIES 100V PA Horn Speakers

UHC-30XT.
Input Power30W RMS/45W Max.
Power Taps30/25/20/15/10/5W
Impedance330/400/500/670/1k/2kΩ
Frequency Response240-10,000Hz
SPL at 1kHz108dB/1W/1m, 123dB/30W/1m
Dimensionsø313 (L315) mm
Weight2.39kg
MaterialABS (UV Protected)
UHC-25XT.
Input Power25W RMS/38W Max.
Power Taps25/20/15/10/5W
Impedance400/500/670/1k/2kΩ
Frequency Response250-10,000Hz
SPL at 1kHz108dB/1W/1m, 122dB/25W/1m
Dimensionsø274 (L310) mm
Weight2.34kg
MaterialABS (UV Protected)
UHC-15XT.
Input Power15W RMS/23W Max.
Power Taps15/10/5/2.5W
Impedance670/1k/2k/4kΩ
Frequency Response275-7,000Hz
SPL at 1kHz106dB/1W/1m, 118dB/15W/1m
Dimensionsø205 (L270) mm
Weight1.78kg
MaterialABS (UV Protected)
