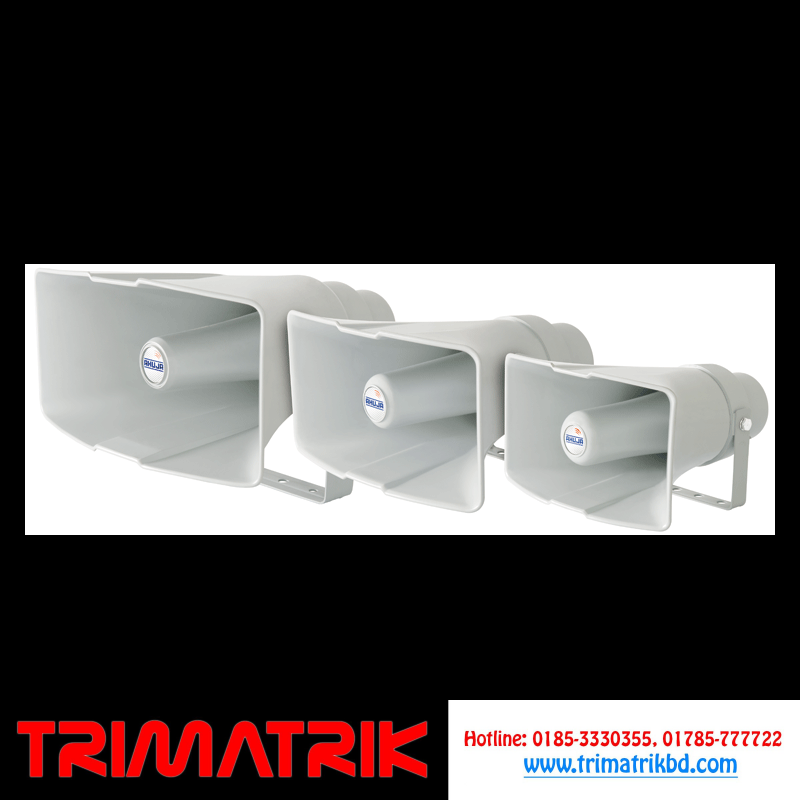

Ahuja SUH SERIES 100V PA Horn Speakers

  • Ahuja high quality, weather proof horn speakers are compact, light weight and rugged. They are moulded in tough UV protected ABS plastic for longer lasting finish.
  • The specifications and construction of these are similar to the low impedance horn speakers. These models have been provided with 100V line matching transformers with multiple taps/impedance easily selectable by changing the position of the rotary switch at the rear of the sealed assembly.
  • These 100V models are ideal for installations where long speaker cables are used, to avoid power loss in the cables.
  • Rectangular models are particularly suitable for areas where directivity of sound is of importance.
  • They meet European Union regulations and comply with low voltage directive standard EN 60065. Degree of protection
  • IP 66 is provided against foreign particles such as dust and jets of water, thus making them ideal for outdoor use.
Categories: ,

Description

Ahuja SUH SERIES 100V PA Horn Speakers

SUH-40XT.
Input Power40W RMS/60W Max.
Power Taps40/30/20/10/5W
Impedance250/330/500/1k/2kΩ
Frequency Response180-7,000Hz
SPL at 1kHz112.5dB/1W/1m, 128.5dB/40W/1m
Dimensions400 x 200 (L422) mm
Weight3.90kg
MaterialABS (UV Protected)
SUH-25XT.
Input Power25W RMS/38W Max.
Power Taps25/20/15/10/5W
Impedance400/500/670/1k/2kΩ
Frequency Response250-10,000Hz
SPL at 1kHz108dB/1W/1m, 122dB/25W/1m
Dimensions315 x 165 (L320) mm
Weight2.30kg
MaterialABS (UV Protected)
SUH-15XT.
Input Power15W RMS/23W Max.
Power Taps15/10/5/2.5W
Impedance670/1k/2k/4kΩ
Frequency Response275-7,000Hz
SPL at 1kHz106dB/1W/1m, 118dB/15W/1m
Dimensions250 x 145 (L293) mm
Weight1.89kg
MaterialABS (UV Protected)
