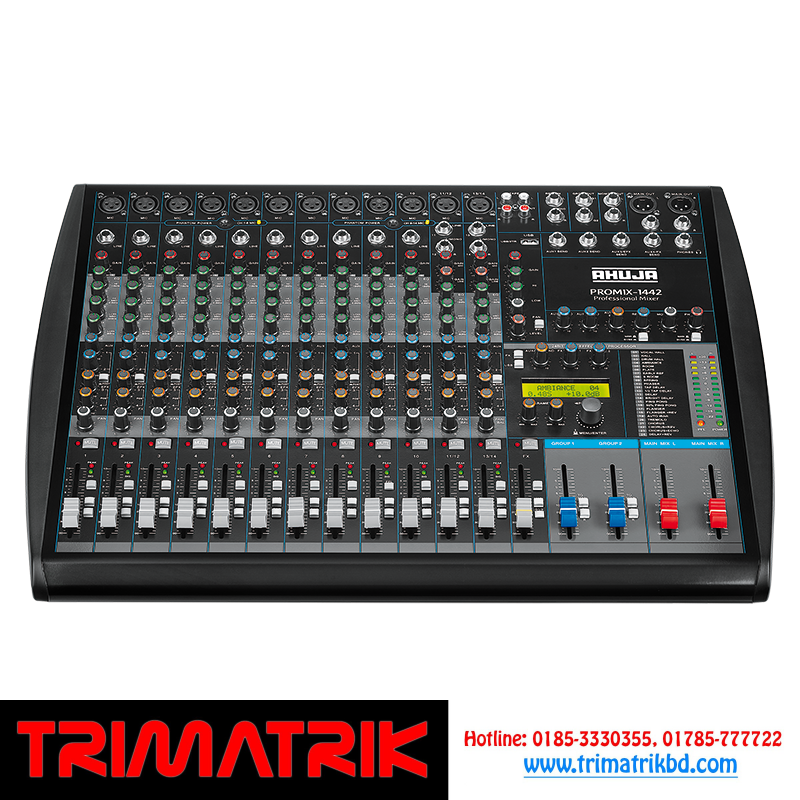

Ahuja PROMIX-1442

Ahuja PROMIX-1442 With Built-in MP3 Player, 48V Phantom Supply on all Channels AC Operation with 24 Digital Effects, 2 Group Outputs

  • Professional mixer with user-friendly construction & aesthetically designed side panels.
  • 12 MIC and 10 LINE Balanced Mono inputs with enhanced headroom. 2 STEREO Balanced inputs.
  • Built-in MP3 player with 11 preset EQ settings.
  • Digital multi EFFECTS processor with 24 built-in effects.
  • LCD display for viewing the effects/USB settings.
  • All MIC inputs are through 3 pin F/XLR connectors.
  • All LINE & STEREO inputs are through 6.3mm (1/4”) stereo phone jack sockets.
  • All MIC inputs are available with 48V phantom supply which can be switched ON/OFF.
  • Each input channel has a GAIN control, 4 band active EQ controls, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
  • The STEREO channel has a GAIN control, 3 band active EQ control, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
  • Pre/Post selector switch for AUX1 and AUX2 in each channel.
  • Channel MUTE switch provided on each individual channel.
  • Peak LED for signal clipping indication. Signal LED for input signal indication.
  • Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
  • Stereo Tape Playback Input through L&R RCA sockets.
  • Stereo Tape Output through L&R RCA sockets.
  • Two group outputs through 6.3mm (1/4”) phone jack sockets and individual group faders.
  • Monitor outputs through 6.3mm (1/4”) phone jack sockets and individual control.
  • Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
  • L&R AUX RETURN inputs with level control. PFL switch on each channel.
  • Headphone output with Level Control for output monitoring.
  • Operates on 240V 50Hz AC mains.
Category:

Description

Ahuja PROMIX-1442 With Built-in MP3 Player, 48V Phantom Supply on all Channels AC Operation with 24 Digital Effects, 2 Group Outputs

MIC INPUT Impedance/Gain2kΩ Balanced/65dB
LINE INPUT Impedance/Gain20kΩ Balanced/45dB
STEREO INPUT (L/Mono & R).
Impedance/Gain10kΩ Balanced/20dB
THD<0.08%
Frequency Response25Hz – 20kHz (+0, -1dB)
EQUALIZATION.
HI/HI-Mid/LOW-Mid/LOW±12dB at 12kHz/2.5kHz/400Hz/80Hz
Clip LED Indication4dB prior to true clip
Line Output Nominal/Max Level4dBu/21dBu (1.22V/9V)
Impedance600Ω
Digital Effects24 Effects Digital Processor
Digital PlayerMP3 Player with USB Reader, 11 Preset EQs
Headphone Output200mV at 8W, THD <1%
MAXIMUM GAIN.
Mic Input to Line Outputs90dB
Line Input to Line Outputs70dB
Stereo Input to Line Outputs20dB
AUX Send (Pre) Unbalanced5V
AUX Send (Post) Unbalanced9V
AUX Return (L&R) Balanced600mV
Group Outputs3V
Monitor Outputs1.6V
Tape Output (L&R)600mV
Tape Input (L&R)100mV
SIGNAL TO NOISE RATIO>80dB
POWER SUPPLYAC: 220-240V, 50/60Hz
DIMENSIONSW560 × H111 × D410 mm
WEIGHT6.70kg
Ahuja PROMIX-1442
Ahuja PROMIX-1442
