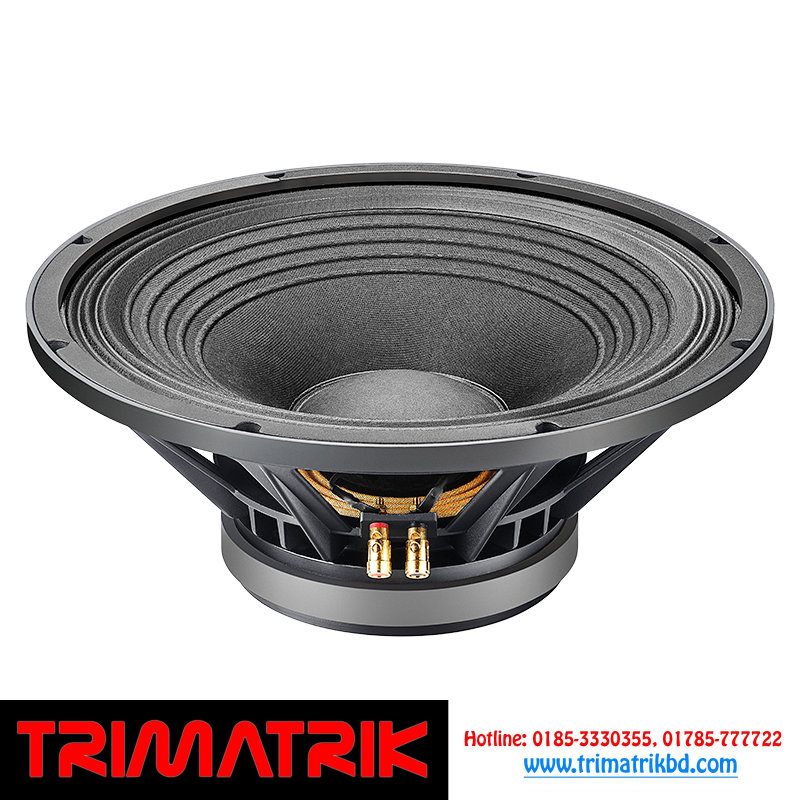

Ahuja L15-MB400

Ahuja L15-MB400 400 WATTS

High Power 38.1cm (15”) Low Frequency Speaker

  • Excellent low and mid frequency response.
  • Ideal for high power 2-Way Speaker Systems.
  • Triple roll, exponential cone geometry.
  • High temperature copper clad aluminium wire voice coil wound on polyamide former.
Category:

Description

Ahuja L15-MB400 400 WATTS

Power Rating400W RMS
Nominal Diameter380mm (15”)
Nominal Impedance8Ω
Sensitivity (1W/1m )99dB
Magnet Weight2.31kg
Resonant Frequencey (Fs)40Hz
DC resistance (Re)6.5Ω
Electromagnetic Q (Qes)0.41
Mechanical Q (Qms)8.0
Total Q (Qts)0.39
Compliance Equivalent Volume (VAS)168Litr
Surface Area of Cone (Sd)855cm2
Reference Efficiency (ηo)2.72%
Voice Coil3.0”
Moving Mass (Mms)91gm
BL Product (BL)18TM
Coil Inductance (Le)1.1mH
Overall Diameter389.5 mm
Depth157 mm
Baffle Hole Diameter350 mm
Bolt Mount Diameter (PCD)369 mm (8 Bolts)
Weight7.8kg
Ahuja L15-MB400
Ahuja L15-MB400
