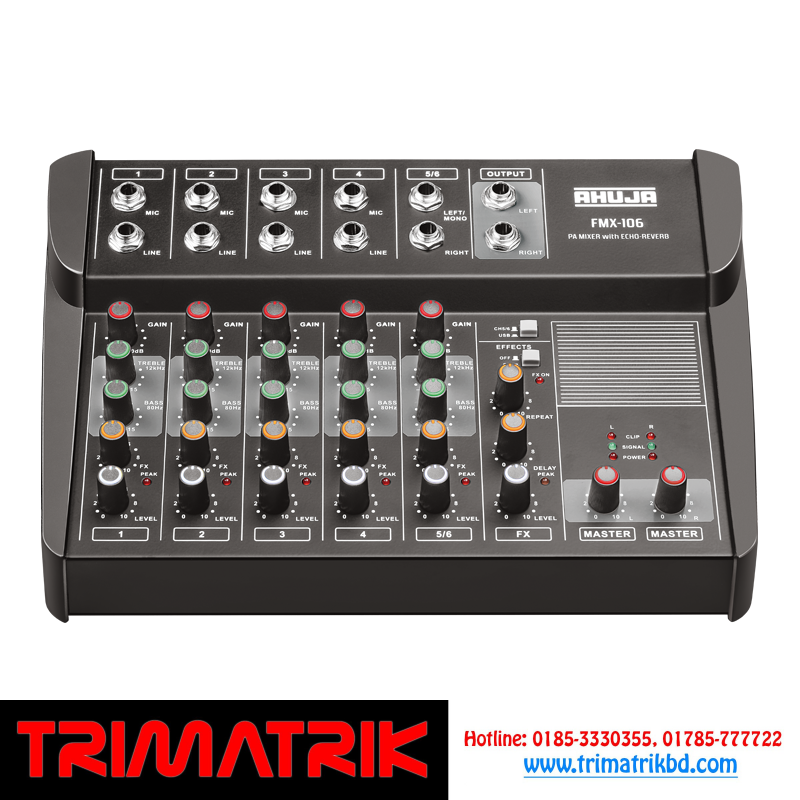

Ahuja FMX-106

Ahuja FMX-106 6 Channel AC Operation

  • Compact and reliable professional PA Mixer which is aesthetically superior and easily portable.
  • Upto four low impedance microphones and Line level signal sources can be connected in either balanced or unbalanced configuration, through a 6.3 mm (1/4”) stereo jack socket.
  • Each channel has a GAIN control for optimum adjustment of the MIC & LINE input sensitivities.
  • Active BASS & TREBLE controls in each channel for desired equalisation of the input signal.
  • Separate FX (effects) level control for each input channel.
  • Stereo input channel is provided with a GAIN control, 2 band EQ, FX & LEVEL Controls.
  • Built-in digital effects processor with DELAY, REPEAT and LEVEL controls.
  • Line level LEFT & RIGHT outputs through 6.3 mm (1/4”) stereo jack sockets.
  • Individual SIGNAL & CLIP LEDs for optimum setting of signal levels.
Category:

Description

Ahuja FMX-106 6 Channel AC Operation

MIC Input (Impedance/Gain)2kΩ Balanced/65dB, 1kΩ Unbalanced/65dB
LINE Input (Impedance/Gain)20kΩ Balanced/45dB, 10kΩ Unbalanced/45dB
Distortion< 0.1%
Frequency Response25Hz-20 kHz (-1dB)
Tone ControlsBass: ±15dB at 80Hz, Treble: ±15dB at 12kHz
OutputLine Output HI: 0dBu / +21dBu (775mV/9V)
Delay SystemDigital Signal Processing
Delay Range SettingsVariable from 20 to 300ms
Signal to Noise Ratio> 68dB
Power SupplyAC: 220-240v 50/60Hz
DimensionsW281 x H75 x D210 mm
Weight1.60kg
Ahuja FMX-106
Ahuja FMX-106
