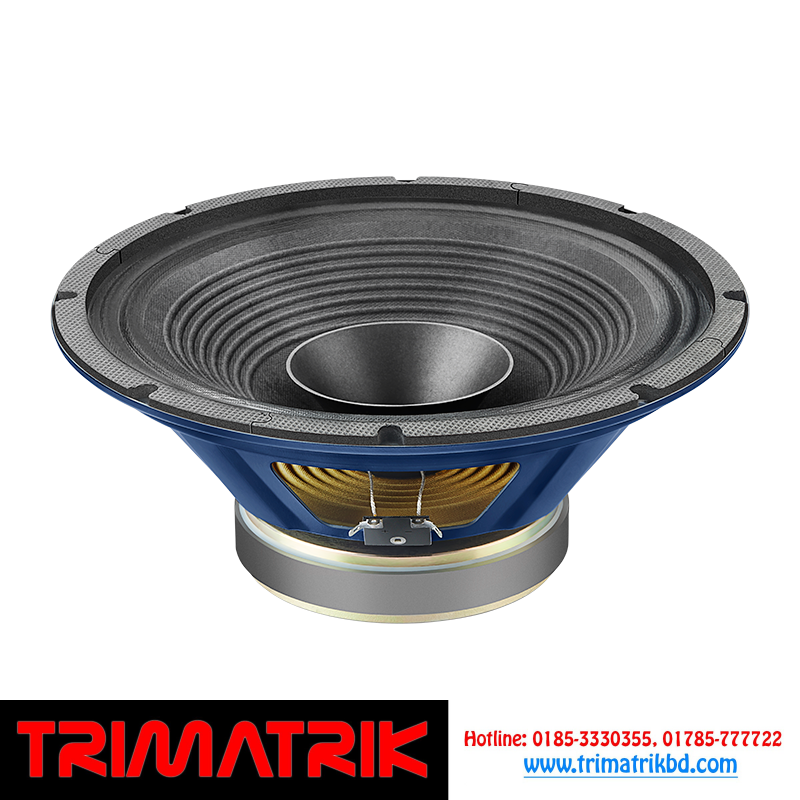

Ahuja DX12-F200/DZ12-F200

Ahuja DX12-F200/DZ12-F200 200 WATTS

High Efficiency 30.48cm (12”) Dual Cone Full Range Speaker

  • 30.48cm (12”) dual cone speaker with wide spectrum frequency response.
  • High quality specially designed imported cones and spider for extremely clear, low distortion sound reproduction.
  • Impedance of DX12-F200 is 8Ω and DZ12-F200 is 16Ω.
  • 5.08cm (2”) CCAW voice coil with high temperature rating for safe, reliable operation.
SEND ENQUIRY
Category:

Description

Ahuja DX12-F200/DZ12-F200 200 WATTS

Power Rating200W RMS
Nominal Diameter305 mm (12”)
Nominal Impedance8Ω/16Ω
Sensitivity (1W/1m )97dB
Magnet Weight1.16kg
Resonant FrequenceY (Fs)50Hz
DC resistance (Re)6.8Ω/13.0Ω
Electromagnetic Q (Qes)0.92
Mechanical Q (Qms)3.26
Total Q (Qts)0.72
Surface Area of Cone (Sd)510cm2
Reference Efficiency (ηo)3.6%
Voice Coil DIAMETER2.0”
Overhang (Xmax)2.5 mm
Moving Mass (Mms)36.7gm
BL Product (BL)11.2TM
Coil Inductance (Le)0.69mH
Overall Diameter313 mm
Depth127 mm
Baffle Hole Diameter285 mm
Bolt Mount Diameter (PCD)295 mm (8 Bolts)
Weight4.16kg
Ahuja DX12-F200/DZ12-F200
Ahuja DX12-F200/DZ12-F200
