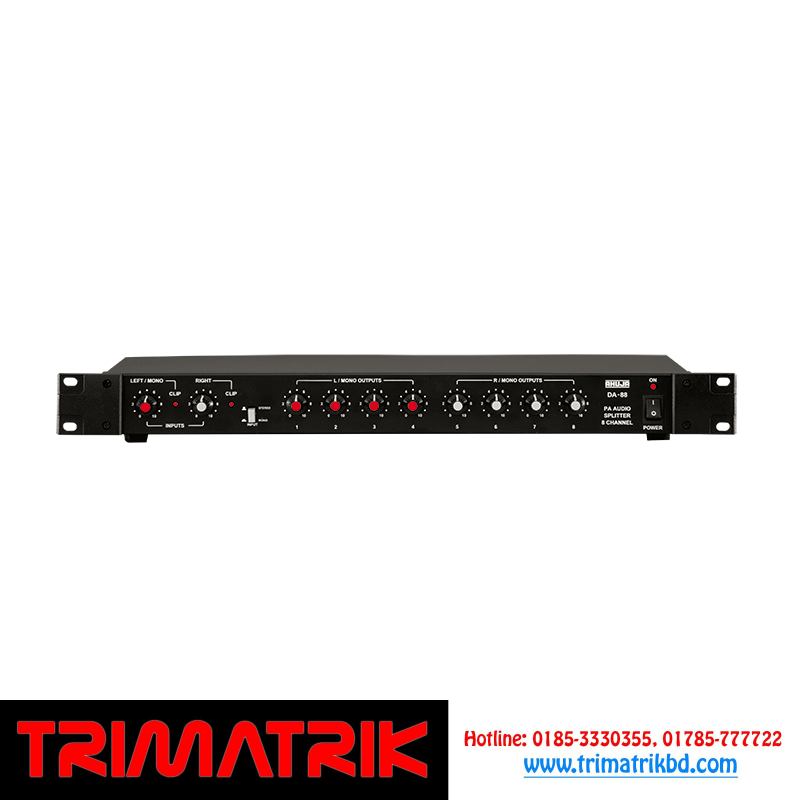

Ahuja DA-88 PA Audio Splitter AC Operation

  • Compact and rugged professional line level signal splitter.
  • Designed for use in a wide variety of indoor and outdoor PA applications.
  • Accepts Line Level Stereo as well as Mono inputs through F/XLR connector as well as 6.3mm (1/4”) stereo phone jack sockets.
  • Provides four stereo balanced outputs or eight mono balanced outputs through M/XLR connectors.
  • Individual volume control for each input & output channel.
  • Separate clip LED indicator for Left and Right input signal.
  • Easy to operate Stereo/Mono push switch, provided on front panel.
  • Operates on AC mains.
  • 19” rack mountable in 1U size and usable as a table top unit also.

Ahuja DA-88

Input Channels2 × 100mV/20kΩ  Balanced
Outputs8 × 1V / 50Ω  Balanced
Frequency Response20-20,000Hz ±3dB
Distortion<0.1%
Signal to Noise Ratio70dB
Power SupplyAC: 220-240V 50/60Hz
DimensionsW483 × H52 × D195 mm
Weight2.80kg
