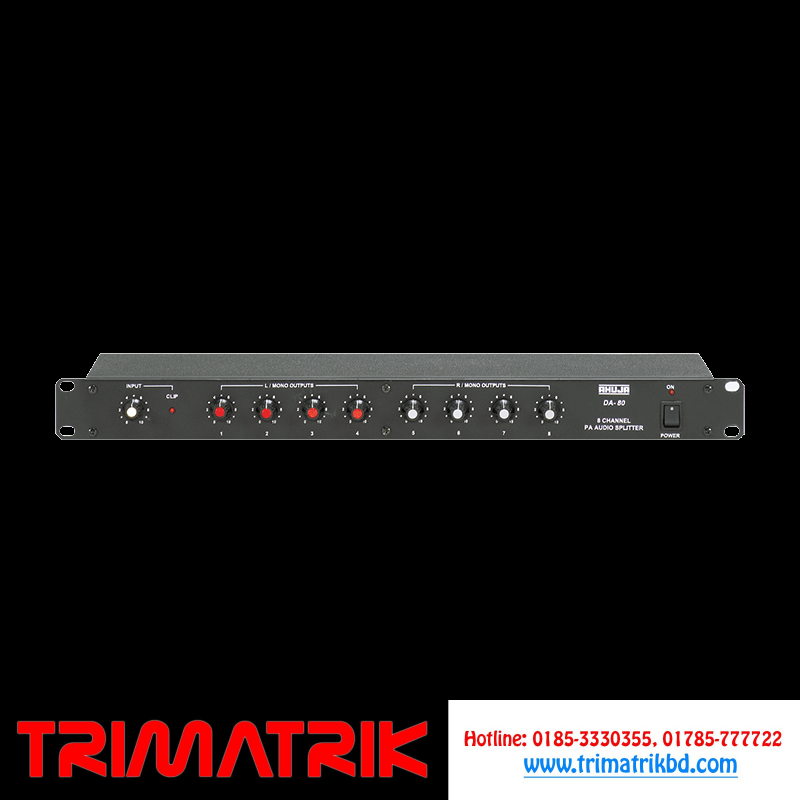

Ahuja DA-80 AC & 24V DC Operation

  • Sleek & compact 8-channel line signal splitter suitable for various large installations & PA applications. Recommended for use when a single programme source has to feed several amplifiers. Avoids signal loading and related distortion problems.
  • Accepts line level Stereo/Mono input.
  • Provides four line level stereo outputs or eight line level mono outputs.
  • Individual volume controls for input and eight output channels.
  • Clip LED for setting optimum distortion free input levels.
  • Operates on AC mains and 24V DC Car Battery.
  • 19” rack mountable in 1U space and also usable as a table top unit.

Ahuja DA-80

Input Channels2 × 100mV/47kΩ
Outputs8 × 200mV/470Ω
Frequency Response20-20,000Hz ±3dB
Distortion< 0.1%
Signal to Noise Ratio70dB
power SupplyAC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
DimensionsW483 × H43 × D178 mm
Weight2.8kg
