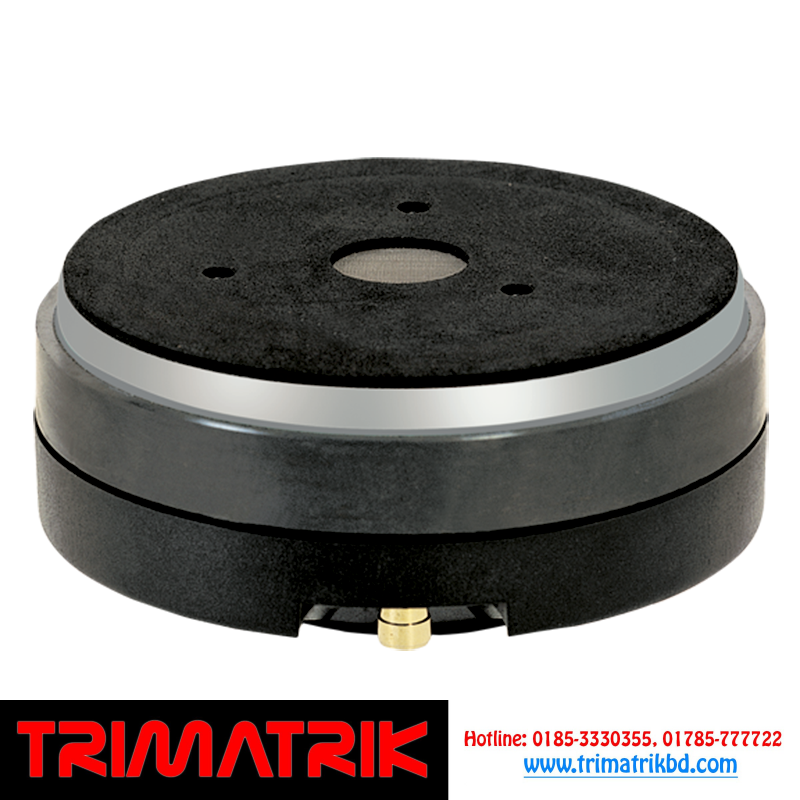

Ahuja CD-80

Ahuja CD-80 80 Watts PA Compression Driver

  • Ahuja introduces a professional compression driver CD-80, suitable for high power speaker systems. With a suitable horn it is ideal for use with low frequency speakers AHUJA   L15-MB300, L15-MB400 and L15-MB500.
  • 80 Watts power handling capacity
  • 600 Hz cut-off frequency
  • Recommended crossover frequency 2.5kHz.
  • Strontium ferrite magnet
  • High SPL of 108 dB
  • TITANIUM diaphragm
  • EDGE WOUND copper clad aluminium ribbon wire voice coil
  • Voice coil former of resin bonded KAPTON
Category:

Description

Ahuja CD-80 80 Watts PA Compression Driver

Throat Diameter25mm (1″)
Mounting TypeBolt-On
Nominal Impedance8 ohm
D.C. Resistance6.4 ohm
Power Capacity80W (Continuous Program)
Sensitivity 1W/1M108dB with H-4220
Usable Frequency Range1.5K~18kHz
Recommended Crossover2.7kHz 18dB/oct
Voice Coil Diameter44.4 mm (1.75″)
Flux Density1.7 T
MagnetStrontium Ferrite
DiaphragmTitanium
Voice Coil MaterialEdge Wound Copper Clad Aluminium Ribbon
Voice Coil FormerResin Bonded Kapton
Weight2.5kg
