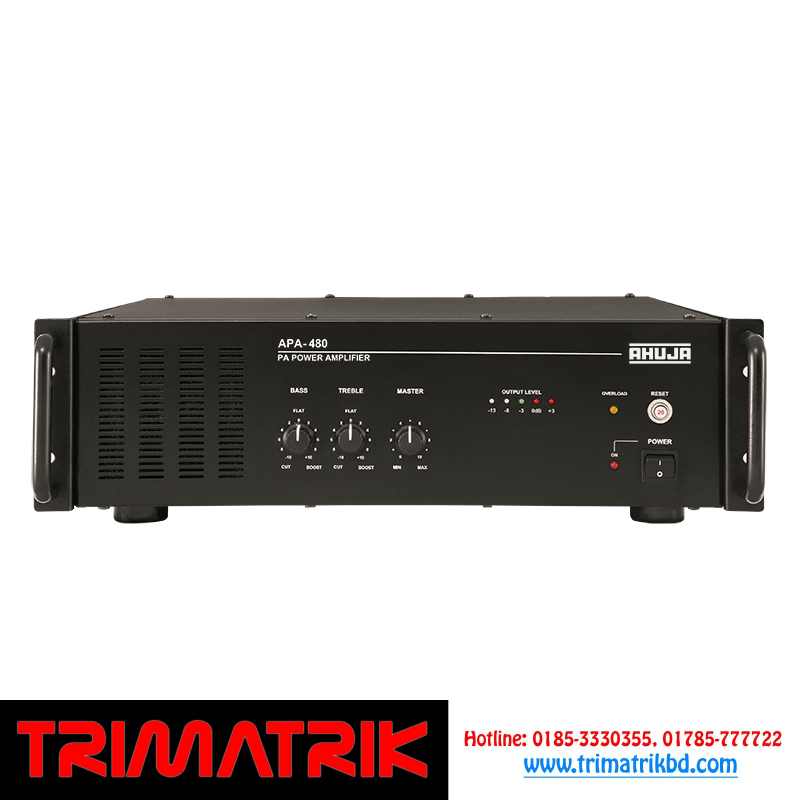

Ahuja APA-480 600 WATTS Installation PA Power Amplifier
- 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
- 100V input is provided for connecting another amplifier’s output in long line applications.
- Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
- Resettable circuit breaker for protection against overload and short circuit.
- Loop through output for connecting another booster amplifier.
- 19” Rack mountable chassis.
- Instant transfer to DC power (Car Battery) if AC power fails.
Ahuja APA-480 600
Power Output | 750W Max., 600W RMS at 10% THD, 550W RMS at 5% THD, 500W RMS at 2% THD, 480W RMS at 1% THD |
Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
Input Channels | 1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input/50kΩ |
Frequency Response | 50-15,000Hz ±3dB |
Signal to Noise Ratio | 60dB |
Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
Outputs | Loop through 1 × 200mV/600W, 2 ×1V/1kW |
Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
Power Consumption | AC: 1200VA DC: 15A |
Dimensions | W485 × H142 × D510 mm |
Weight | 32.20kg |
