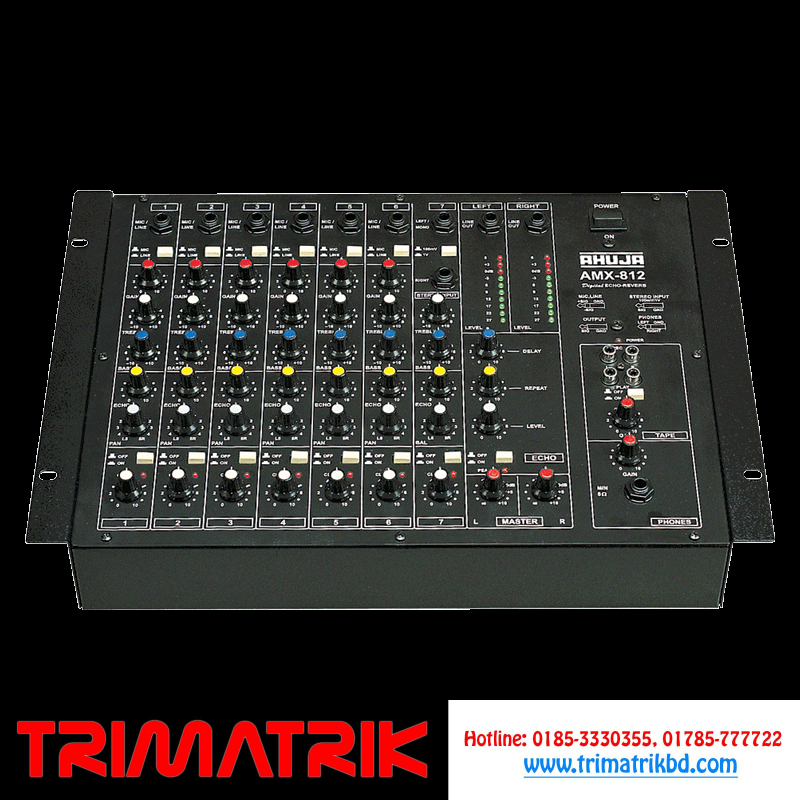

Ahuja AMX-812

Ahuja AMX-812 8 Channel AC & 24V DC Operation

  • Input Channels: Each Channel has a 1/4” phone jack selectable for either Mic or Line input & accepts both balanced & unbalanced signals.
  • Stereo Channel: Independent Stereo input through separate 1/4” unbalanced phone jacks for Left & Right channels.
  • Each channel has Gain, Bass, Treble, PAN, ECHO and Level controls with Clip LED indicator.
  • Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
Category:

Description

Ahuja AMX-812 8 Channel AC & 24V DC Operation

Power RequirementsAC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery)
MIC Input (Impedance/Gain)2kΩ/62dB
LINE Input (Impedance/Gain)20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB
Distortion< 0.08%
Frequency Response30Hz – 20kHz (+0,-1dB)
Tone ControlsBass : ±12dB at 100Hz, Treble : ± 12dB at 10kHz
OUTPUT.
Line Output HI0dBm/+17dBm (775mV/5.5V)
ECHO/Reverb SystemDigital Signal Processing
Signal to Noise Ratio>70dB (0dBm, 0.775V)
DimensionsW423 × H93 × D302 mm
Weight5.0kg
Ahuja AMX-812
Ahuja AMX-812
