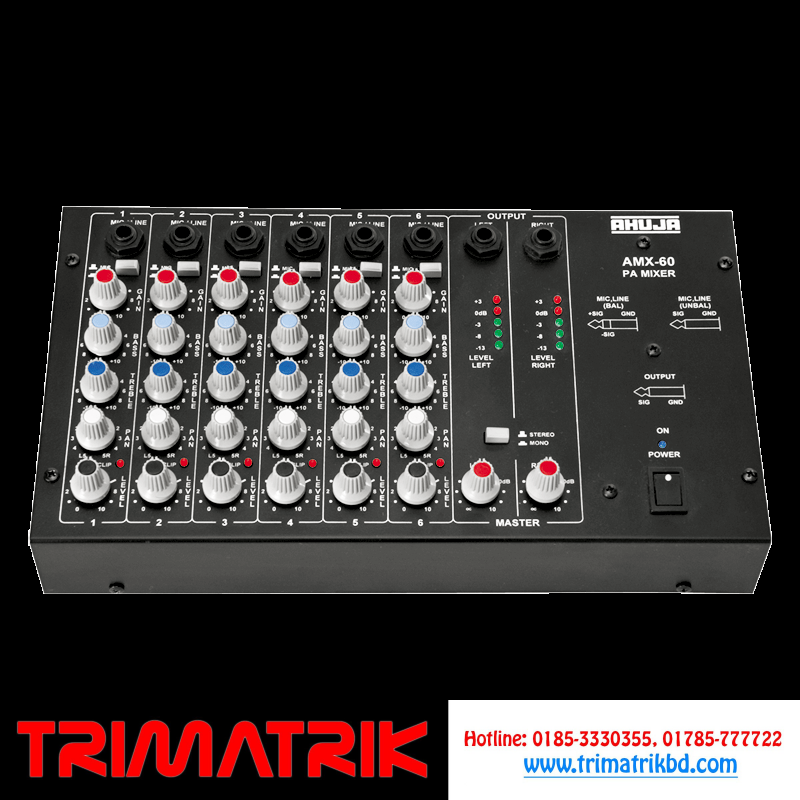

Ahuja AMX-60 6 Channel AC Operation

  • General Purpose 6 Channel PA Mixer Preamplifier
  • Input Channels : Each Channel has a 1/4” balanced phone jack for Mic/Line & accepts both balanced & unbalanced signals.
  • MONO/STEREO Output : Mono output is available from either Left or Right output jacks when the switch is in ‘Mono’ position.
  • Each channel has Gain, Bass, Treble, PAN and Level controls with Clip LED indicator.
  • Individual five segment LED array for left and right outputs.

Ahuja AMX-60

Power RequirementsAC: 220-240v 50/60Hz
MIC Input (Impedance/Gain)2kΩ Balanced/62dB, 1kΩ Unbalanced/62dB
LINE Input (Impedance/Gain)20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB
Distortion< 0.1%
Frequency Response20Hz-18 kHz (-1dB)
Tone ControlsBass: ± 12dB at 100Hz, Treble: ± 12dB at 10kHz
Line Output (RATED/MAX)0dBm/+18dBm (775mV/6.5V)
Signal to Noise Ratio> 68dB
DimensionsW295 X H70 X D180mm
Weight2.4Kg
