Description

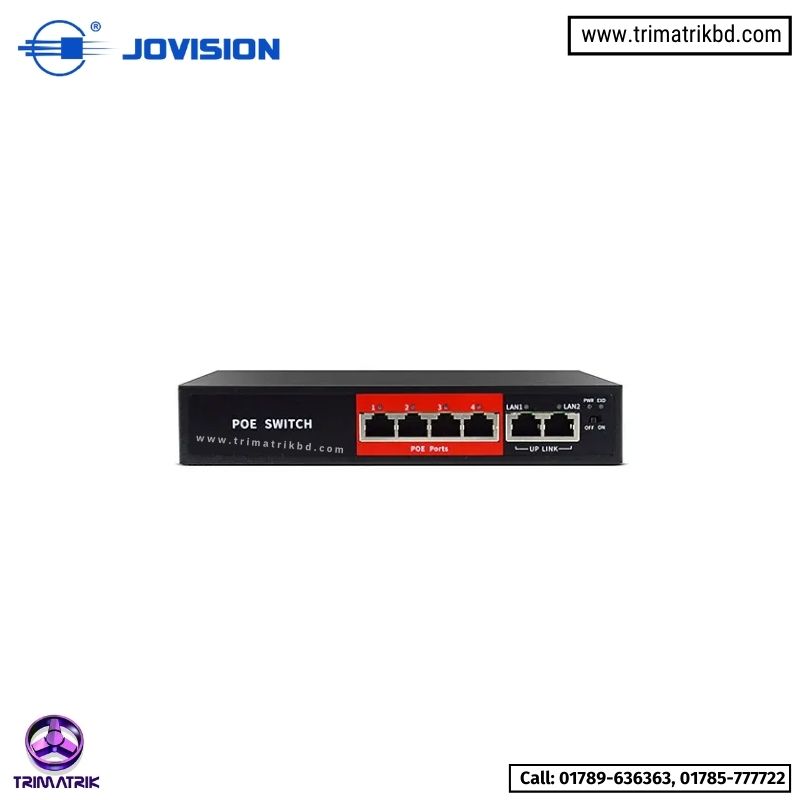

Jovision JVS-S08-4P-65W 6 Port PoE+2 Port Uplink Switch in Bangladesh
The JVS-S08-4P 100-megabit standard PoE switch provides 6 10 / 100M adaptive RJ45 ports, and ports 1 to 4 have PoE power supply, which can be used as ethernet power supply equipment. All ports can automatically detect and identify devices that meet IEEE 802.3at/af standards and power them via network lines. Support general switch mode / VLAN isolation 150m transmission and other two modes. JVS-S06-4P makes it easier for you to use PoE technology deploys wireless access point (AP) and terminal network devices based on IP.
Product Characteristics
• Follow IEEE 802.3 Ethernet and IEEE 802.3u fast Ethernet protocol standard;
• Support for IEEE802.3at/af standard, compatible with IEEE802.3at/af for power equipment (PD)
• Support common switch mode / VLAN isolation 150m transmission two modes
• Provide 6 10 / 100m adaptive RJ45 ports, in which ports 1 to 4 support PoE power supply;
• All ports support automatic flip (Auto MDI/MDI-X) functionality
• Support IEEE802.3X full-duplex flow control and Backpressure semi-duplex flow control
• All ports have line speed forwarding capability
• Autonomous Learning and Aging supporting MAC address
• Full metal housing, full load 65W
Software Specifications
• Compliance with IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards (PD) compatible with IEEE 802.3at/af Standard Store-and-forward
• MAC automatic Learning and Aging
• IEEE802.3X full Duplex flow Control and Backpressure Semi-Duplex Flow Control
Hardware Specifications
| Port | 100M PoE | 4 |
| 100M Cascade RJ45 | 2 | |
| Function | Storage and Forwarding | Support |
| Exchange Content | 1.2G | |
| MAC Address | 2K | |
| Use Environment | Working temperature: 0 ℃ ~ 40 ℃ Storage temperature: -40 ℃ ~ 70 ℃ | |
| Working humidity: 10 ~ 90% RH does not condense Storage humidity: 5% 90% RH does not condense | ||
| PoE Standard | Standard IEEE802.3af/at single port maximum power 30W, machine maximum power 65W support overcurrent, overvoltage, short-circuit full protection Support for High Power PD soft start Support sequential boot | |
| Input Power Supply | AC input 220 V 50 / 60 HZ; Power 52V-150W | |
| Supported Standards & Protocols | IEEE 802.3 Ethernet Media access Control Protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802. 3u 100BASE-TX Fast Ethernet IEEE 802.3af realizes Ethernet equipment Power supply by Ethernet data Line pair or device IEEE 802.3at realizes IEEE 802.3x flow Control of Ethernet equipment by Ethernet data Line pair or device | |
| Default System Mode | General switch / VLAN isolation 150m transmission | |
| Data Signaling Rate | Ethernet 10Mbps half-duplex, 20Mbps full duplex Fast Ethernet 100Mbps half-duplex, 200Mbps full duplex | |
| Network Medium | 10 Base-T: 2 to 3 classes (Cat3) or more UTP/STP (≤ 100m) 100Base-TX: 2 to 5 Cat5 or more UTP/STP (≤ 100m) 10Base-TX: 2 to 5 classes (Cat6) or more UTP/STP (≤ 250m) | |
| Physical Specification | Product size: 190mm*131mm*34mm (L*W*H) | |
Jovision JVS-S068-4P-65W Price in Bangladesh
| Price: | ৳ 3,500.00 |
| Brand: | Jovision |
| Model: | JVS-S08-4P-65W |
| Item: | POE Switch |
| Contact No: | 01785-777722 |
| Hotline: | 01789-636363 |
| Warranty: | One Year |
