Description

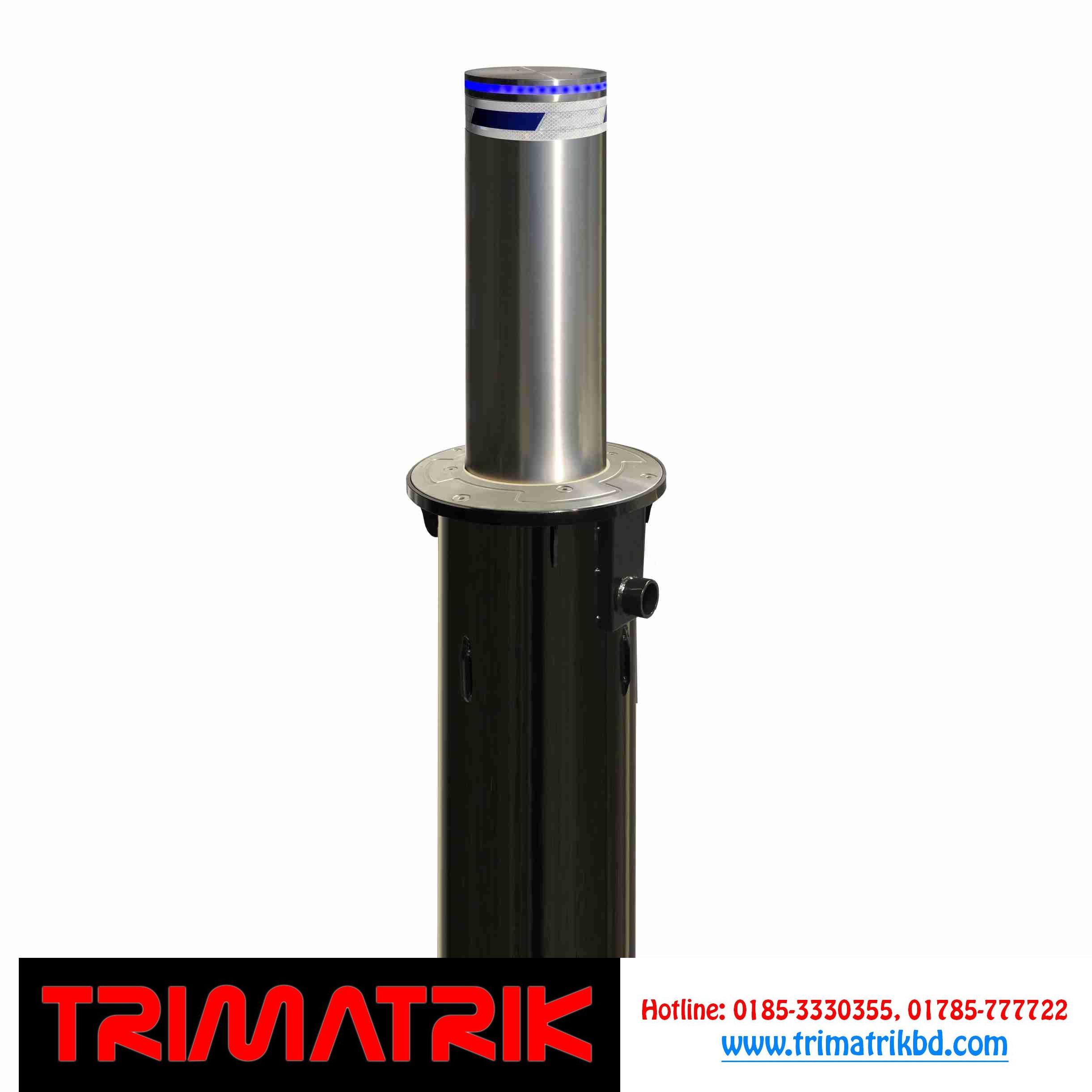

Automatic lifting safety column in Bangladesh.
Features
- It can be used normally after a vehicle carrying 6 tons is impacted
2, withstand 60 tons of vehicle traffic, normal use
- Good water resistance, it can still be used normally when immersed in water
4, rugged and durable, carrying a large load, stable operation, low noise
- Adopt single-chip microcomputer control, stable and reliable system operation performance, easy to integrate
- Linked control can be carried out with other equipment, and can also be combined with other equipment to realize automatic control
7, while in case of power failure or malfunction, such as a lifting column in the raised state, to be lowered, by the control box button column down to the ground level
- Using 5CM wide reflective film, the reflectivity can reach more than 90%
- Adopting the international leading hydraulic drive technology, the whole system has high safety performance, reliability and stability
- Remote control device: Through wireless remote control, the lifting and lowering of road piles can be controlled within 30 meters around the controller (according to the radio communication environment on site).
11, the panel flanges thick 10MM, 10MM top of the column flange thickness
- Accept non-standard customization

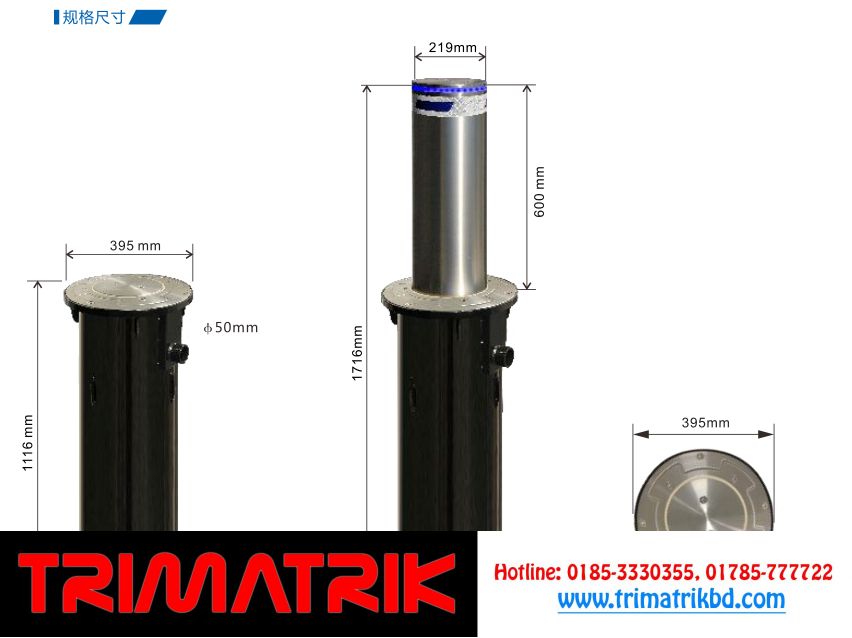

Technical Parameters
| System control | Electro-hydraulic |
| power supply | 220V（Optional ：24V/36V） |
| Material | 304 stainless steel |
| Cylinder thickness | 6MM |
| Rise height | 600MM |
| Stainless steel cylinder diameter | 219MM |
| Waterproof and dustproof grade | IP68 |
| weight | 95KG |
| Ascent speed | 4S |
| Descent speed | 2S |
| Embedded height | 1116MM |
| Through pressure | Passable 100-ton container truck |
| Anti-collision level | K6（Equivalent to a 60K/h crash, the car is prevented and the equipment works as usual） |
| Working temperature | -35℃-75℃ |
| working environment | -10℃-65℃，Rainproof, moistureproof and dustproof |
## Automatic lifting safety column – Made-in Bangladesh.
